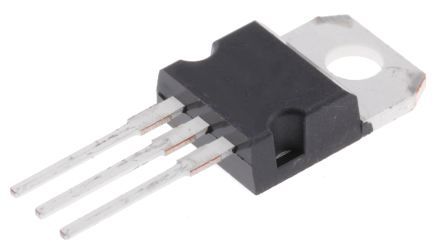

onsemi BDX33BG

Enrgtech Part No: ET21507159
|
Manufacturer Part No:
BDX33BG
|
Manufacturer: onsemi

(0)

Product Information

Transistor Type:

NPN

Dimensions:

10.53 x 4.83 x 9.28mm

Mounting Type:

Through Hole

Maximum Power Dissipation:

70 W

Maximum Collector Emitter Voltage:

80 V dc

Maximum Emitter Base Voltage:

5 V dc

Package Type:

TO-220

Number of Elements per Chip:

Maximum Operating Temperature:

+150 °C

Pin Count:

Transistor Configuration:

Single

Current - Collector (Ic) (Max):

10 A

warehouse-1

50 - In Stock

Available in stock

Quantity

Unit Price (ex VAT)

Price

£ 0.56

£ 28.00

100

£ 0.42

£ 42.00

250

£ 0.42

£ 105.00

Mfr Part No:

BDX33BG

Seller:

onsemi (warehouse-1)

Origin:

Warranty:

Manufacturer

Data Code:

ET21507159

Order Today!

From: United Kingdom

Est Ship Date: 07 Jul, 2026

Est Fastest Delivery: 08 Jul, 2026

Quantity Quantity

This is manufactured by onsemi. The manufacturer part number is BDX33BG. The transistor is a npn type. The given dimensions of the product include 10.53 x 4.83 x 9.28mm. The product is available in through hole configuration. It has a maximum operating temperature of +150 °c. The maximum collector current includes 10 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The maximum collector emitter breakdown voltage of the product is 80 v. The product has -65°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in [Package/ Case]. Furthermore, 750 @ 3a, 3v is the minimum DC current gain at given voltage. The 2.5v @ 6ma, 3a is the maximum Vce saturation. In addition, it is reach unaffected. The transistor is a npn - darlington type. It is shipped in tube. Its typical moisture sensitivity level is not applicable. It has a long 58 weeks standard lead time. In addition, 500µa is the maximum current at collector cutoff. to-220 is the supplier device package value. The maximum power of the product is 70 w. Moreover, it corresponds to bdx33, a base product number of the product. The product is designated with the ear99 code number

Datasheet BDX33BG(Technical Reference)

onsemi RoHS(Environmental Information)

Multi Dev 30/Sep/2022(PCN Assembly/Origin)

TO-220 Case Outline Update 18/Sep/2014(PCN Design/Specification)

BDX33(34)B,C(Datasheets)
