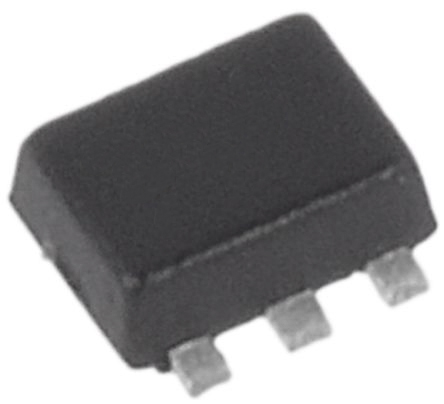

onsemi NSBC114EDXV6T1G Dual NPN Digital Transistor, 100 mA, 50 V, 6-Pin SOT-563

Enrgtech Part No: ET21545907
|
Manufacturer Part No:
NSBC114EDXV6T1G
|
Manufacturer: Onsemi

NSBC114EDXV6T1G onsemi Dual NPN Digital Transistor, 100 mA, 50 V, 6-Pin SOT-563

(0)

Product Information

Pin Count:

Dimensions:

1.7 x 1.3 x 0.6mm

Package Type:

SOT-563

Mounting Type:

Surface Mount

Transistor Type:

NPN

Base-Emitter Resistor:

10kΩ

Typical Input Resistor:

10 kΩ

Typical Resistor Ratio:

Transistor Configuration:

Dual

Maximum Power Dissipation:

500 mW

Number of Elements per Chip:

Maximum DC Collector Current:

100 mA

8000 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

4000

£ 0.055

£ 220.00

8000

£ 0.043

£ 344.00

24000

£ 0.042

£ 1008.00

Mfr Part No:

NSBC114EDXV6T1G

Seller:

Onsemi

Origin:

Warranty:

Manufacturer

Data Code:

ET21545907

Order Today!

From: United Kingdom

Est Ship Date: 15 Jul, 2026

Est Fastest Delivery: 16 Jul, 2026

Quantity Quantity

This is onsemi Dual NPN Digital Transistor 100 mA 50 V 6-Pin SOT-563 manufactured by Onsemi. The manufacturer part number is NSBC114EDXV6T1G. The given dimensions of the product include 1.7 x 1.3 x 0.6mm. The product is available in surface mount configuration. The transistor is a npn type. It has a maximum operating temperature of +150 °c.
