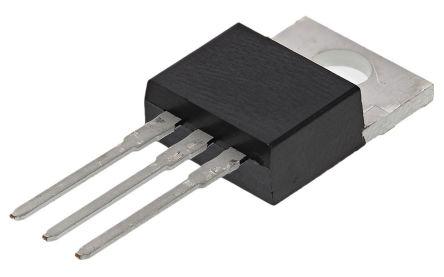

Diodes Inc APT13005T-G1 NPN High Voltage Bipolar Transistor, 4 A, 700 V, 3-Pin TO-220AB

APT13005T-G1 Diodes Inc NPN High Voltage Bipolar Transistor, 4 A, 700 V, 3-Pin TO-220AB
APT13005T-G1
APT13005T-G1
APT13005T-G1 Diodes Inc NPN High Voltage Bipolar Transistor, 4 A, 700 V, 3-Pin TO-220AB
DiodesZetex

Product Information

Dimensions:
10.2 x 4.5 x 16.1mm
Maximum Collector Emitter Saturation Voltage:
0.9 V
Width:
4.5mm
Transistor Configuration:
Single
Maximum Operating Frequency:
4 (Min.) MHz
Package Type:
TO-220AB
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
10 V
Maximum Base Emitter Saturation Voltage:
1.3 V
Maximum Emitter Base Voltage:
9 V
Length:
10.2mm
Maximum DC Collector Current:
4 A
Pin Count:
3
Minimum DC Current Gain:
8
Mounting Type:
Through Hole
Maximum Power Dissipation:
75 W
Maximum Collector Emitter Voltage:
700 V
Height:
16.1mm
Minimum Operating Temperature:
-65 °C
RoHs Compliant
Checking for live stock

This is Diodes Inc NPN High Voltage Bipolar Transistor 4 A 700 V 3-Pin TO-220AB manufactured by DiodesZetex. The manufacturer part number is APT13005T-G1. The given dimensions of the product include 10.2 x 4.5 x 16.1mm. Furthermore, the product is 4.5mm wide. It has a maximum operating temperature of +150 °c. The transistor is a npn type. Its accurate length is 10.2mm. The product is available in through hole configuration. In addition, the height is 16.1mm. Whereas, the minimum operating temperature of the product is -65 °c.

pdf icon
APT13005 450V NPN HIGH VOLTAGE POWER TRANSISTOR(Technical Reference)
