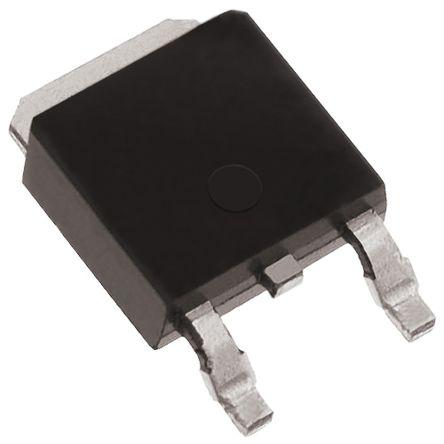

Renesas Electronics 2SA1615-Z-E1-AZ PNP Transistor, 10 A, 20 V, 3-Pin DPAK

2SA1615-Z-E1-AZ Renesas Electronics PNP Transistor, 10 A, 20 V, 3-Pin DPAK
2SA1615-Z-E1-AZ
Renesas Electronics

Product Information

Dimensions:
6.5 x 5.5 x 2.3mm
Maximum Collector Emitter Saturation Voltage:
-0.25 V
Transistor Material:
Si
Width:
5.5mm
Transistor Configuration:
Single
Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
PNP
Maximum Collector Base Voltage:
-30 V
Maximum Base Emitter Saturation Voltage:
-1.2 V
Maximum Emitter Base Voltage:
-10 V
Length:
6.5mm
Maximum DC Collector Current:
10 A
Pin Count:
3
Minimum DC Current Gain:
160
Mounting Type:
Surface Mount
Maximum Power Dissipation:
15 W
Maximum Collector Emitter Voltage:
20 V
Height:
2.3mm
RoHs Compliant
Checking for live stock

This is PNP Transistor 10 A 20 V 3-Pin DPAK manufactured by Renesas Electronics. The manufacturer part number is 2SA1615-Z-E1-AZ. The given dimensions of the product include 6.5 x 5.5 x 2.3mm. Furthermore, the product is 5.5mm wide. It has a maximum operating temperature of +150 °c. The transistor is a pnp type. Its accurate length is 6.5mm. The product is available in surface mount configuration. In addition, the height is 2.3mm.
