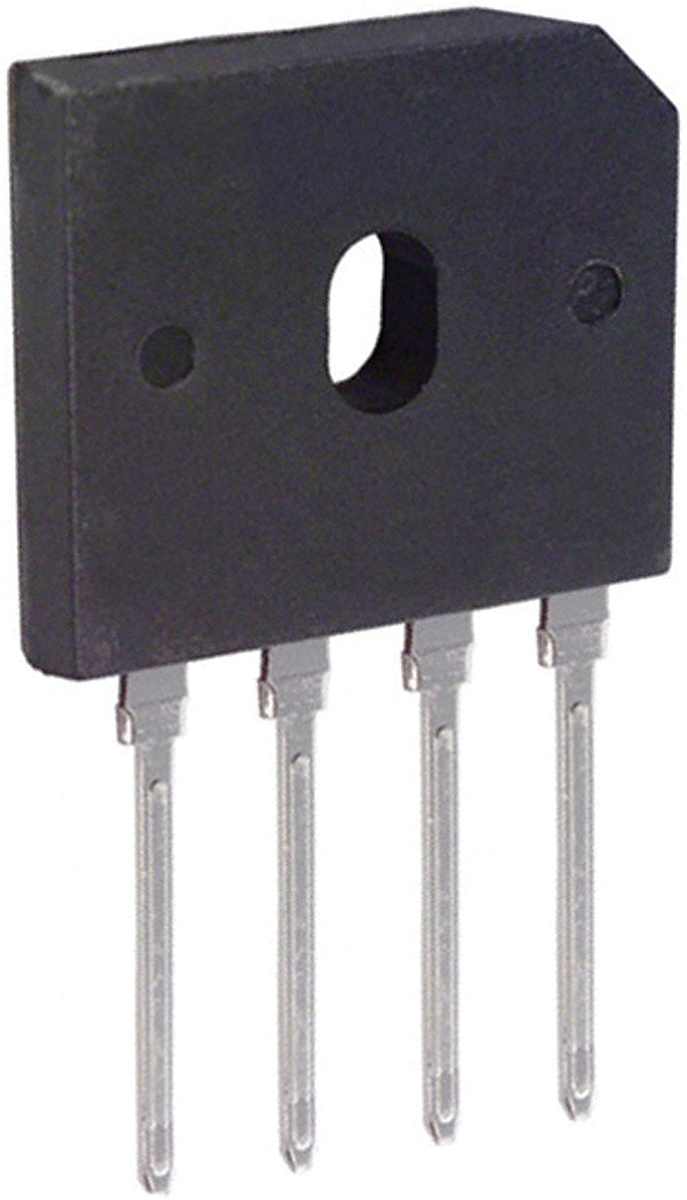

Fagor Electronica GBU607G TU, Bridge Rectifier, 6A 1000V, 4-Pin GBU

GBU607G-TU Fagor Electronica GBU607G TU, Bridge Rectifier, 6A 1000V, 4-Pin GBU
Fagor Electronica

Product Information

Peak Reverse Current:
500µA
Dimensions:
22.3 x 3.56 x 18.8mm
Bridge Type:
Single Phase
Diode Technology:
Silicon Junction
Peak Average Forward Current:
6A
Mounting Type:
Through Hole
Junction Capacitance:
94pF
Peak Non-Repetitive Forward Surge Current:
175A
Height:
18.8mm
Peak Forward Voltage:
1.1V
Width:
3.56mm
Length:
22.3mm
Package Type:
GBU
Peak Reverse Repetitive Voltage:
1000V
Minimum Operating Temperature:
-55 °C
Diode Type:
Silicon Junction
Configuration:
Single
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is Bridge Rectifier 6A 1000V 4-Pin GBU manufactured by Fagor Electronica. The manufacturer part number is GBU607G TU. The given dimensions of the product include 22.3 x 3.56 x 18.8mm. The product is available in through hole configuration. In addition, the height is 18.8mm. Furthermore, the product is 3.56mm wide. Its accurate length is 22.3mm. Whereas, the minimum operating temperature of the product is -55 °c. It is designed with a silicon junction diode. The product is available in single configuration. It has a maximum operating temperature of +150 °c.

pdf icon
GBU6xxG 6A SIL Bridge Rectifier(Technical Reference)
