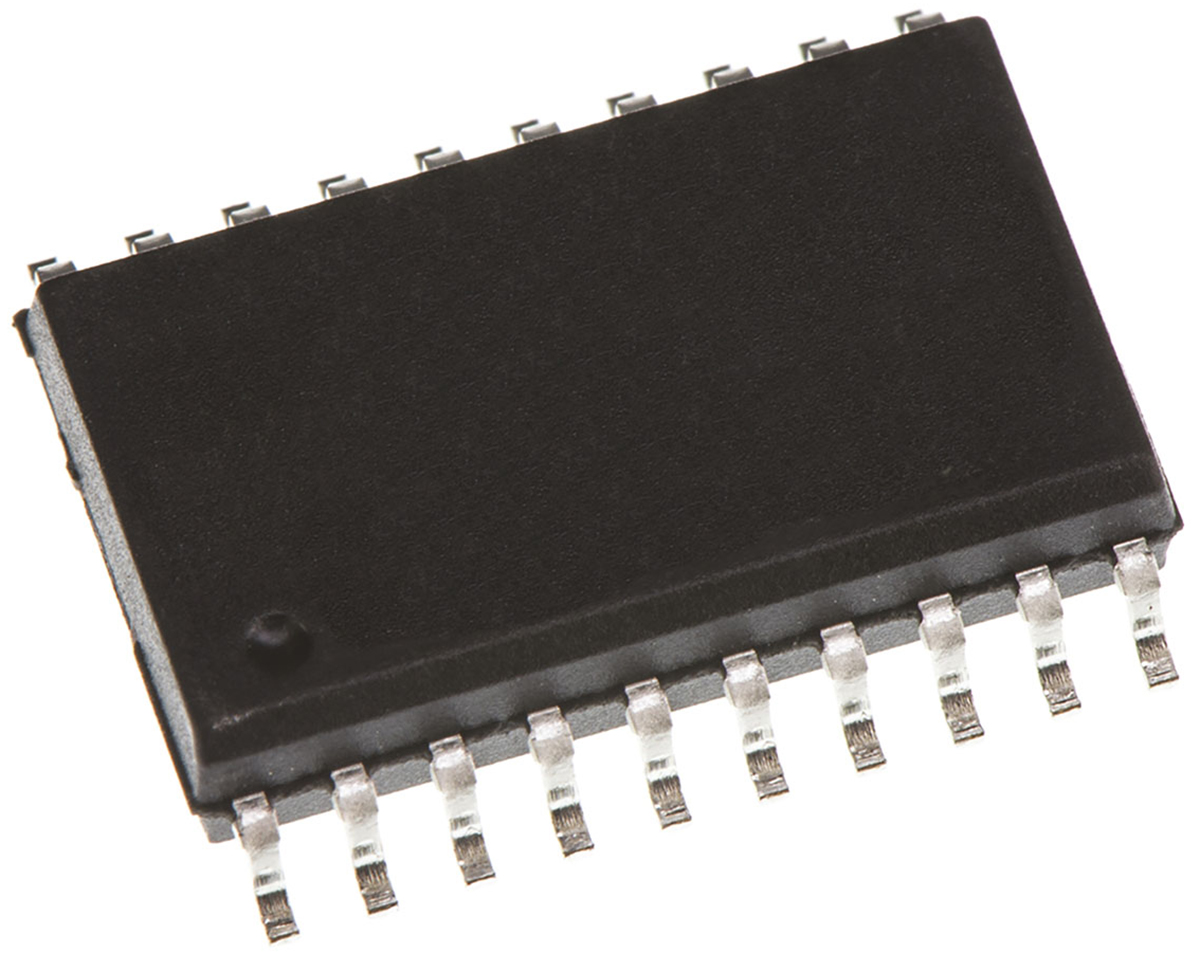

onsemi MM74HC540WM, Octal-Channel Inverting 3-State Buffer, 20-Pin SOIC

Enrgtech Part No: ET21535642
|
Manufacturer Part No:
MM74HC540WM
|
Manufacturer: Onsemi

MM74HC540WM onsemi , Octal-Channel Inverting 3-State Buffer, 20-Pin SOIC

(0)

Product Information

Width:

7.5mm

Height:

2.34mm

Length:

13mm

Polarity:

Inverting

Pin Count:

Dimensions:

13 x 7.5 x 2.34mm

Input Type:

LS-TTL

Output Type:

3 State

Logic Family:

CMOS

Package Type:

SOIC

Mounting Type:

Surface Mount

Logic Function:

Buffer

144 - In Stock

In Stock

Each

Quantity

Unit Price (ex VAT)

Price

£ 0.55

£ 19.80

£ 0.51

£ 36.72

180

£ 0.49

£ 88.20

Mfr Part No:

MM74HC540WM

Seller:

Onsemi

Origin:

Warranty:

Manufacturer

Data Code:

ET21535642

Order Today!

From: United Kingdom

Est Ship Date: 16 Jul, 2026

Est Fastest Delivery: 17 Jul, 2026

Quantity Quantity

This is onsemi Octal-Channel Inverting 3-State Buffer 20-Pin SOIC manufactured by Onsemi. The manufacturer part number is MM74HC540WM. Furthermore, the product is 7.5mm wide. In addition, the height is 2.34mm. Its accurate length is 13mm. The given dimensions of the product include 13 x 7.5 x 2.34mm. It carries ls-ttl input type. Furthermore, it has a3 state output. The product is available in surface mount configuration. It is supplied with 8 channels. It has a maximum operating temperature of +85 °c. Whereas, the minimum operating temperature of the product is -40 °c.
