Dimensions:
2.1 x 2.4 x 0.9mm
Logic Family:
7WB
Width:
2.4mm
Number of Output Options per Bit:
2
Maximum Low Level Output Current:
128mA
Number of Inputs per Chip:
2
Maximum High Level Output Current:
-128mA
Maximum Propagation Delay Time @ Maximum CL:
0.25 ns @ 50 pF
Number of Input Options per Bit:
2
Minimum Operating Supply Voltage:
4 V
Package Type:
US
Number of Elements per Chip:
2
Configuration:
1 x 1:1
Maximum Operating Temperature:
+125 °C
Maximum On Resistance:
70Ω
Length:
2.1mm
Pin Count:
8
Number of Outputs per Chip:
2
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Surface Mount
Height:
0.9mm
Minimum Operating Temperature:
-55 °C
Bus Width:
2bit
Maximum Quiescent Current:
±1µA
Propagation Delay Test Condition:
50pF
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C

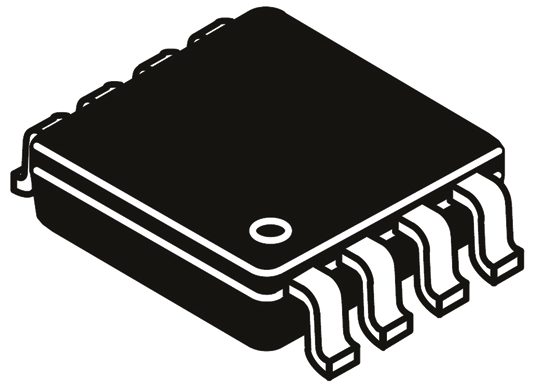

Package / Case:
8-VFSOP (0.091", 2.30mm Width)
Type:
Bus Switch
REACH Status:
REACH Unaffected
Voltage Supply Source:
Single Supply
Independent Circuits:
2
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
1 x 1:1
standardLeadTime:
35 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
US8
Voltage - Supply:
4V ~ 5.5V
Current - Output High, Low:
-
Base Product Number:
7WBD3306
ECCN:
EAR99
