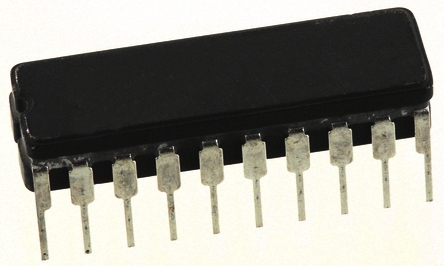

Texas Instruments SN54LS245J, Bus Transceiver, 8-Bit Non-Inverting TTL, 5V, 20-Pin CDIP

SN54LS245J Texas Instruments , Bus Transceiver, 8-Bit Non-Inverting TTL, 5V, 20-Pin CDIP
Texas Instruments

Product Information

Polarity:
Non-Inverting
Dimensions:
24.2 x 6.92 x 4.57mm
Minimum Operating Supply Voltage:
4.5 V
Logic Family:
LS
Width:
6.92mm
Input Level:
TTL
Maximum Low Level Output Current:
12mA
Maximum High Level Output Current:
-12mA
Maximum Propagation Delay Time @ Maximum CL:
12 ns @ 5 V
Number of Channels per Chip:
8
Package Type:
CDIP
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
Output Level:
TTL
Length:
24.2mm
Pin Count:
20
Maximum Operating Supply Voltage:
5.5 V
Mounting Type:
Through Hole
Logic Function:
Bus Transceiver
Height:
4.57mm
Minimum Operating Temperature:
-55 °C
Propagation Delay Test Condition:
45pF
Checking for live stock

This is Bus Transceiver 8-Bit Non-Inverting TTL 5V 20-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is SN54LS245J. The given dimensions of the product include 24.2 x 6.92 x 4.57mm. Furthermore, the product is 6.92mm wide. It has a maximum operating temperature of +125 °c. Its accurate length is 24.2mm. The product is available in through hole configuration. In addition, the height is 4.57mm. Whereas, the minimum operating temperature of the product is -55 °c.
