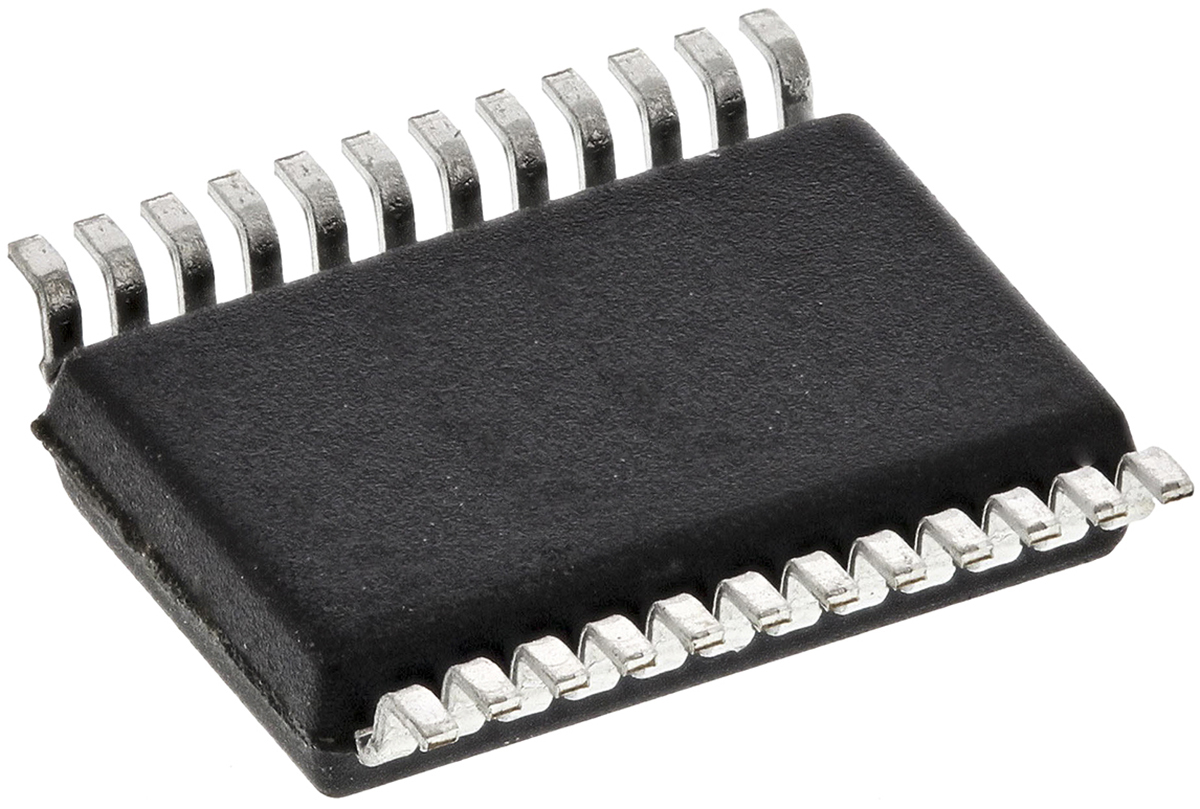

NXP 74LVC4245ADB,112, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 1.5 → 3.6 V, 1.5 → 5.5 V, 24-Pin SSOP

74LVC4245ADB-112 NXP 74LVC4245ADB,112, Bus Transceiver, 8-Bit Non-Inverting LVTTL, 1.5 → 3.6 V, 1.5 → 5.5 V, 24-Pin SSOP
74LVC4245ADB,112
Nexperia

Product Information

Polarity:
Non-Inverting
Dimensions:
8.4 x 5.4 x 1.8mm
Minimum Operating Supply Voltage:
1.5 V
Logic Family:
LVC
Width:
5.4mm
Input Level:
LVTTL
Maximum Low Level Output Current:
24mA
Maximum High Level Output Current:
-24mA
Maximum Propagation Delay Time @ Maximum CL:
3.6 ns @ 5 V
Number of Channels per Chip:
8
Package Type:
SSOP
Number of Elements per Chip:
1
Maximum Operating Temperature:
+125 °C
Output Level:
LVTTL
Length:
8.4mm
Pin Count:
24
Maximum Operating Supply Voltage:
3.6 V, 5.5 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
1.8mm
Minimum Operating Temperature:
-40 °C
Propagation Delay Test Condition:
50pF
RoHs Compliant
Checking for live stock

This is NXP Bus Transceiver 8-Bit Non-Inverting LVTTL 1.5 → 3.6 V 1.5 → 5.5 V 24-Pin SSOP manufactured by Nexperia. The manufacturer part number is 74LVC4245ADB,112. The given dimensions of the product include 8.4 x 5.4 x 1.8mm. Furthermore, the product is 5.4mm wide. It has a maximum operating temperature of +125 °c. Its accurate length is 8.4mm. The product is available in surface mount configuration. In addition, the height is 1.8mm. Whereas, the minimum operating temperature of the product is -40 °c.

pdf icon
Octal Dual Supply Translating Transceiver 3-state Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
