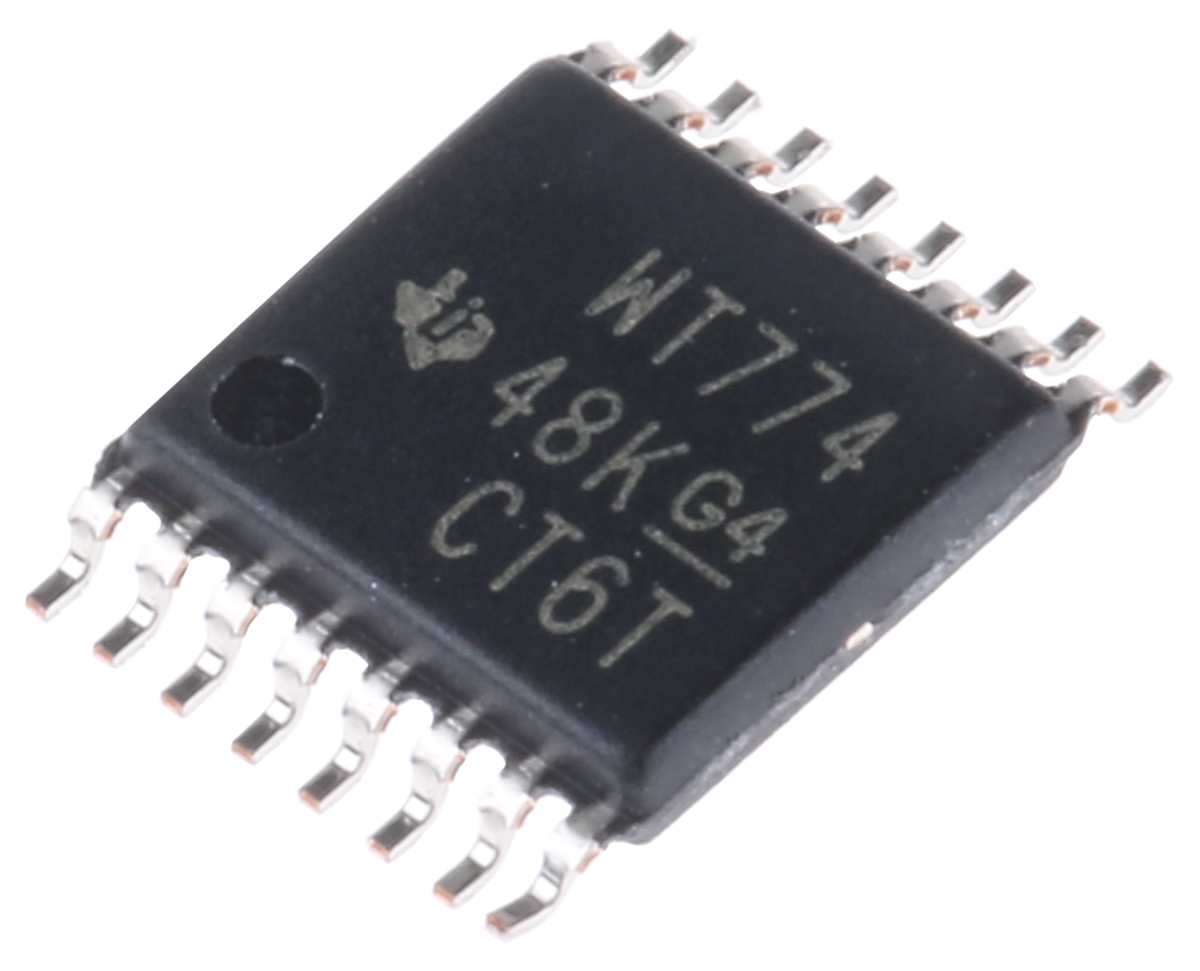

Texas Instruments SN74AVC4T774PW, Dual, Bus Transceiver, 4-Bit Non-Inverting 3-State, 1.2 to 3.6 V, 16-Pin TSSOP

SN74AVC4T774PW Texas Instruments , Dual, Bus Transceiver, 4-Bit Non-Inverting 3-State, 1.2 to 3.6 V, 16-Pin TSSOP
SN74AVC4T774PW
SN74AVC4T774PW
SN74AVC4T774PW Texas Instruments , Dual, Bus Transceiver, 4-Bit Non-Inverting 3-State, 1.2 to 3.6 V, 16-Pin TSSOP
Texas Instruments

Product Information

Polarity:
Non-Inverting
Dimensions:
5.1 x 4.5 x 1.05mm
Minimum Operating Supply Voltage:
1.2 V
Logic Family:
AVC
Width:
4.5mm
Input Level:
CMOS
Maximum Low Level Output Current:
12mA
Maximum High Level Output Current:
-12mA
Maximum Propagation Delay Time @ Maximum CL:
8.2ns
Number of Channels per Chip:
4
Package Type:
TSSOP
Number of Elements per Chip:
2
Maximum Operating Temperature:
+85 °C
Output Level:
3-State
Length:
5.1mm
Pin Count:
16
Maximum Operating Supply Voltage:
3.6 V
Mounting Type:
Surface Mount
Logic Function:
Bus Transceiver
Height:
1.05mm
Minimum Operating Temperature:
-40 °C
Translator Type:
Voltage Level
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Output Signal:
-
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
16-TSSOP (0.173", 4.40mm Width)
Input Signal:
-
REACH Status:
REACH Unaffected
Output Type:
Tri-State, Non-Inverted
Data Rate:
380Mbps
Package:
Tube
Channel Type:
Bidirectional
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - VCCB:
1.1 V ~ 3.6 V
Voltage - VCCA:
1.1 V ~ 3.6 V
standardLeadTime:
12 Weeks
Number of Circuits:
1
Channels per Circuit:
4
Features:
-
Mounting Type:
Surface Mount
Series:
74AVC
Supplier Device Package:
16-TSSOP
Base Product Number:
74AVC4T774
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Dual Bus Transceiver 4-Bit Non-Inverting 3-State 1.2 to 3.6 V 16-Pin TSSOP manufactured by Texas Instruments. The manufacturer part number is SN74AVC4T774PW. The given dimensions of the product include 5.1 x 4.5 x 1.05mm. Furthermore, the product is 4.5mm wide. It has a maximum operating temperature of +85 °c. Its accurate length is 5.1mm. The product is available in surface mount configuration. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -40 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in [Package/ Case]. In addition, it is reach unaffected. Furthermore, it has atri-state, non-inverted output. It has a maximised data speed rate of 380mbps. It is shipped in tube. The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 1 (unlimited). It has a long 12 weeks standard lead time. It integrates 1 circuits. The product 74avc, is a highly preferred choice for users. 16-tssop is the supplier device package value. Moreover, it corresponds to 74avc4t774, a base product number of the product. The product is designated with the ear99 code number
