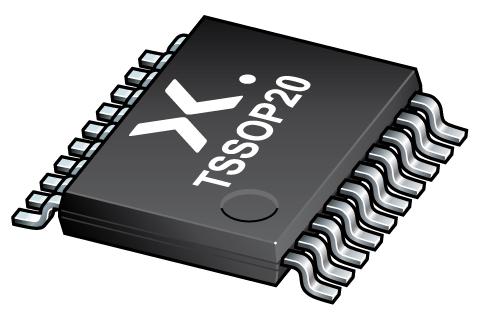

Octal Buffer/Line Driver 3-State TSSOP20

74LVC244APW-118 Octal Buffer/Line Driver 3-State TSSOP20
Nexperia

Product Information

Polarity:
Non-Inverting
Maximum Low Level Output Current:
24mA
Dimensions:
6.6 x 4.5 x 0.95mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
15.8 ns @ 50 pF
Number of Channels per Chip:
8
Logic Function:
Buffer, Line Driver
Logic Family:
74LVC
Height:
0.95mm
Width:
4.5mm
Length:
6.6mm
Package Type:
TSSOP
Propagation Delay Test Condition:
50pF
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Minimum Operating Supply Voltage:
1.2 V
Maximum Operating Temperature:
+125 °C
Pin Count:
20
Maximum High Level Output Current:
-24mA
RoHs Compliant
Checking for live stock

This is Octal Buffer/Line Driver 3-State TSSOP20 manufactured by Nexperia. The manufacturer part number is 74LVC244APW,118. The given dimensions of the product include 6.6 x 4.5 x 0.95mm. The product is available in surface mount configuration. In addition, the height is 0.95mm. Furthermore, the product is 4.5mm wide. Its accurate length is 6.6mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 74LVC244APW,118 on website for other similar products.
We accept all major payment methods for all products including ET16799458. Please check your shopping cart at the time of order.
You can order Nexperia brand products with 74LVC244APW,118 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Bus Transceivers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Octal Buffer/Line Driver 3-State TSSOP20. You can also check on our website or by contacting our customer support team for further order details on Octal Buffer/Line Driver 3-State TSSOP20.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799458 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number 74LVC244APW,118.
Yes. You can also search 74LVC244APW,118 on website for other similar products.
Yes. We ship 74LVC244APW,118 Internationally to many countries around the world.
