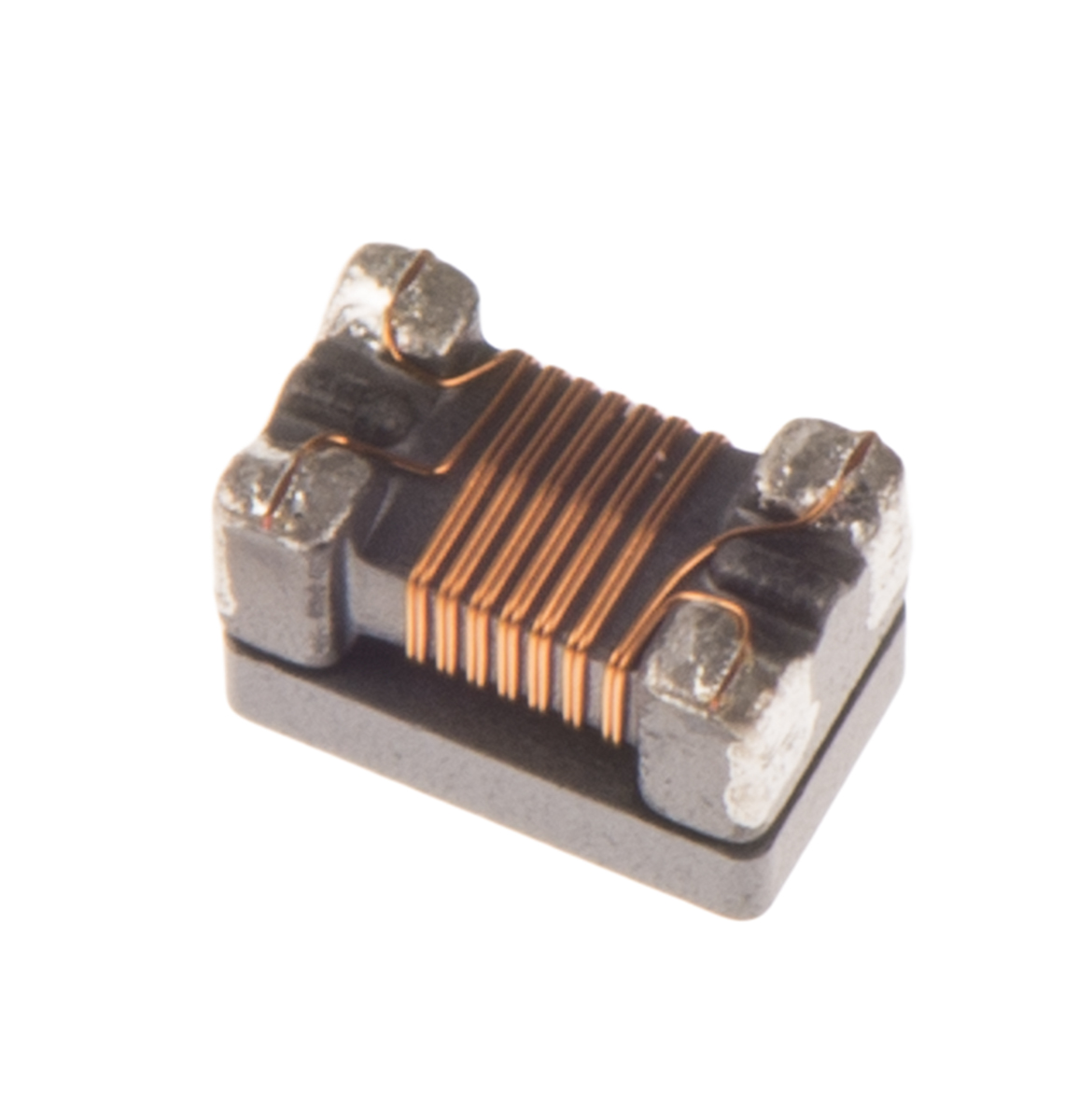

75Ω TDK 50 → 1200MHz Surface Mount Balun Transformer

ATB2012-75011-T 75Ω TDK 50 → 1200MHz Surface Mount Balun Transformer
ATB2012-75011-T
TDK

Product Information

Dimensions:
2 x 1.2 x 1.2mm
Mounting Type:
Surface Mount
Minimum Frequency:
50MHz
Maximum Insertion Loss:
1.2dB
Maximum Operating Temperature:
+85°C
Height:
1.2mm
Width:
1.2mm
Length:
2mm
Maximum Frequency:
1.2GHz
Minimum Operating Temperature:
-40°C
Unbalance Impedance:
75Ω
Pin Count:
4
Balance Impedance:
75Ω
RoHs Compliant
Checking for live stock

This is 75Ω 50 → 1200MHz Surface Mount Balun Transformer manufactured by TDK. The manufacturer part number is ATB2012-75011-T. The given dimensions of the product include 2 x 1.2 x 1.2mm. The product is available in surface mount configuration. It has a maximum operating temperature of +85°c. In addition, the height is 1.2mm. Furthermore, the product is 1.2mm wide. Its accurate length is 2mm. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
ATB Series Datasheet_EN(Technical Reference)
