End 1 Number of Ports:
1
End 1 Number of Contacts:
4
Current Rating:
4A
Maximum Operating Temperature:
+90°C
IP Rating:
IP65, IP67
End 2:
4 Pin Female M8 (1)
End 1 Gender:
Male
Voltage Rating:
30 V
End 1:
M12
End 2 Gender:
Female
End 2 Size:
M8
Minimum Operating Temperature:
-25°C
Length:
50.5mm
Shell Plating:
Nickel
Contact Plating:
Gold over Nickel
End 2 Number of Ports:
1
Contact Material:
Copper Tin Alloy
End 2 Number of Contacts:
4
Body Orientation:
Straight
End 1 Size:
M12
HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Convert From (Adapter End):
Female Sockets
Mounting Feature:
-
Orientation (Convert From):
A
Housing Material:
Thermoplastic Polyurethane (TPU)
Operating Temperature:
-25°C ~ 90°C
Number of Positions (Convert From):
4
Housing Finish:
-
Connector Style:
Standard
Shell Size - Insert (Convert To):
M12
Shielding:
Unshielded
Number of Positions (Convert To):
4
Voltage Rating:
30V
Includes:
-
Housing Color:
Green
Material Flammability Rating:
UL94 HB
Shell Size - Insert (Convert From):
M8
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Threaded
standardLeadTime:
4 Weeks
Current Rating (Amps):
4A
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
SAC
Convert To (Adapter End):
Male Pins
Orientation (Convert To):
A
ECCN:
EAR99

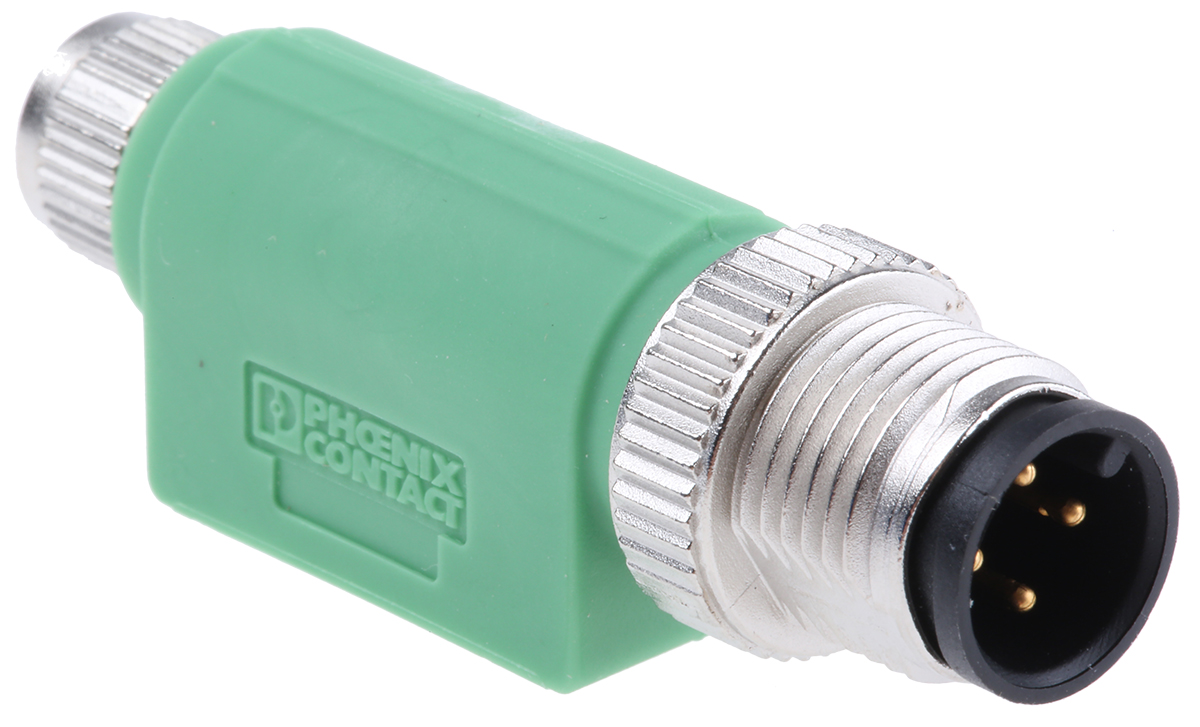

This is manufactured by Phoenix Contact. The manufacturer part number is 1519765. The product has a current rating of 4a. It has a maximum operating temperature of +90°c. Moreover, the product has a nominal 30 v voltage rating. Whereas, the minimum operating temperature of the product is -25°c. Its accurate length is 50.5mm. The product is made from sturdy copper tin alloy materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs compliant. It has conversion specifications from female sockets. The product also features robust thermoplastic polyurethane (tpu) housing material. The product has -25°c ~ 90°c operating temperature range. It comes in standard connector style. Furthermore, the product is shielded with unshielded. Moreover, the product has a nominal 30v voltage rating. It has an integral green housing colour. It carries ul94 hb of material flammability rating. It is shipped in bulk. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, threaded is the Fastening Type of the product. It has a long 4 weeks standard lead time. Additionally, the product's output is 4a It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. The product is available in free hanging (in-line) configuration. The product sac, is a highly preferred choice for users. Can effectively be converted to male pins. The product is designated with the ear99 code number
