End 1 Number of Ports:
1
End 1:
M12
Current Rating:
4A
Voltage Rating:
60 V
End 2:
3 Pin Female M8 (2)
End 1 Number of Contacts:
4
Contact Plating:
Gold over Nickel
Maximum Operating Temperature:
+90°C
End 2 Number of Ports:
2
Shell Plating:
Nickel
End 1 Size:
M12
IP Rating:
IP65, IP67
Body Orientation:
Straight
End 2 Gender:
Female
End 2 Number of Contacts:
6
Length:
40.7mm
Series:
SAC
End 2 Size:
M8
Minimum Operating Temperature:
-25°C
End 1 Gender:
Male
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Convert From (Adapter End):
Male Pins
Mounting Feature:
-
Orientation (Convert From):
A
Housing Material:
Thermoplastic Polyurethane (TPU)
Operating Temperature:
-25°C ~ 90°C
Number of Positions (Convert From):
4
Housing Finish:
-

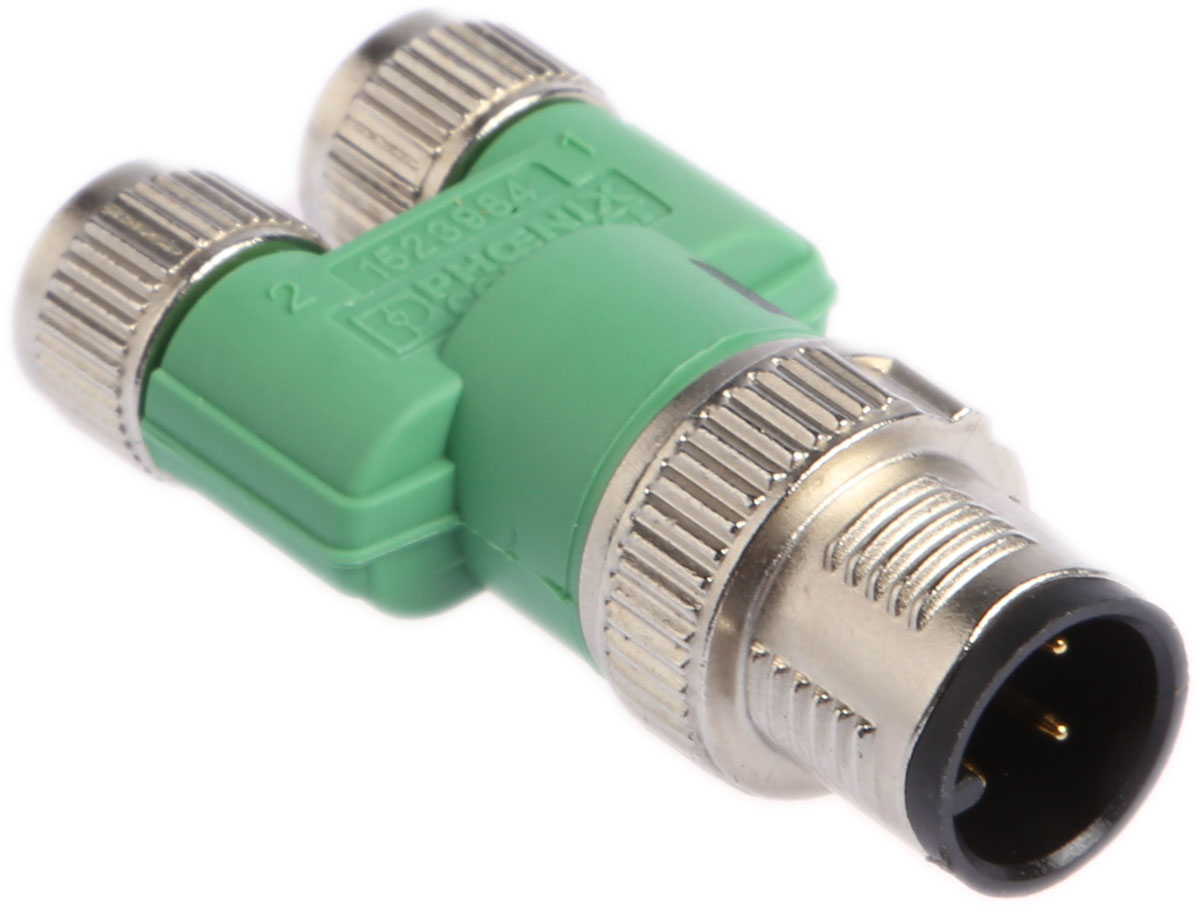

Connector Style:
Distributor Y-Shaped
Shell Size - Insert (Convert To):
M8
Shielding:
Unshielded
Number of Positions (Convert To):
3 (2)
Voltage Rating:
60V
Includes:
-
Housing Color:
Green
Material Flammability Rating:
UL94 HB
Shell Size - Insert (Convert From):
M12
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Twist
standardLeadTime:
8 Weeks
Current Rating (Amps):
4A
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Series:
SAC
Convert To (Adapter End):
Female Sockets (2)
Orientation (Convert To):
A
ECCN:
EAR99
