End 1:
M12
End 2:
M12
Series:
SAC-3P-M12Y/2XM12FS PE
IP Rating:
IP65, IP67
Current Rating:
4A
Voltage Rating:
60 V
Body Orientation:
Straight
Contact Material:
CuZn
Maximum Operating Temperature:
+90°C
Minimum Operating Temperature:
-25°C
Current Rating:
4A
Voltage Rating:
60 V
Series:
SAC-3P-M12Y/2XM12FS PE
Body Orientation:
Straight
IP Rating:
IP65, IP67
Minimum Operating Temperature:
-25°C
Maximum Operating Temperature:
+90°C
Contact Material:
CuZn
HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Convert From (Adapter End):
Male Pins
Orientation (Convert From):
A
Housing Material:
Thermoplastic Polyurethane (TPU)
Operating Temperature:
-25°C ~ 90°C
Number of Positions (Convert From):
5

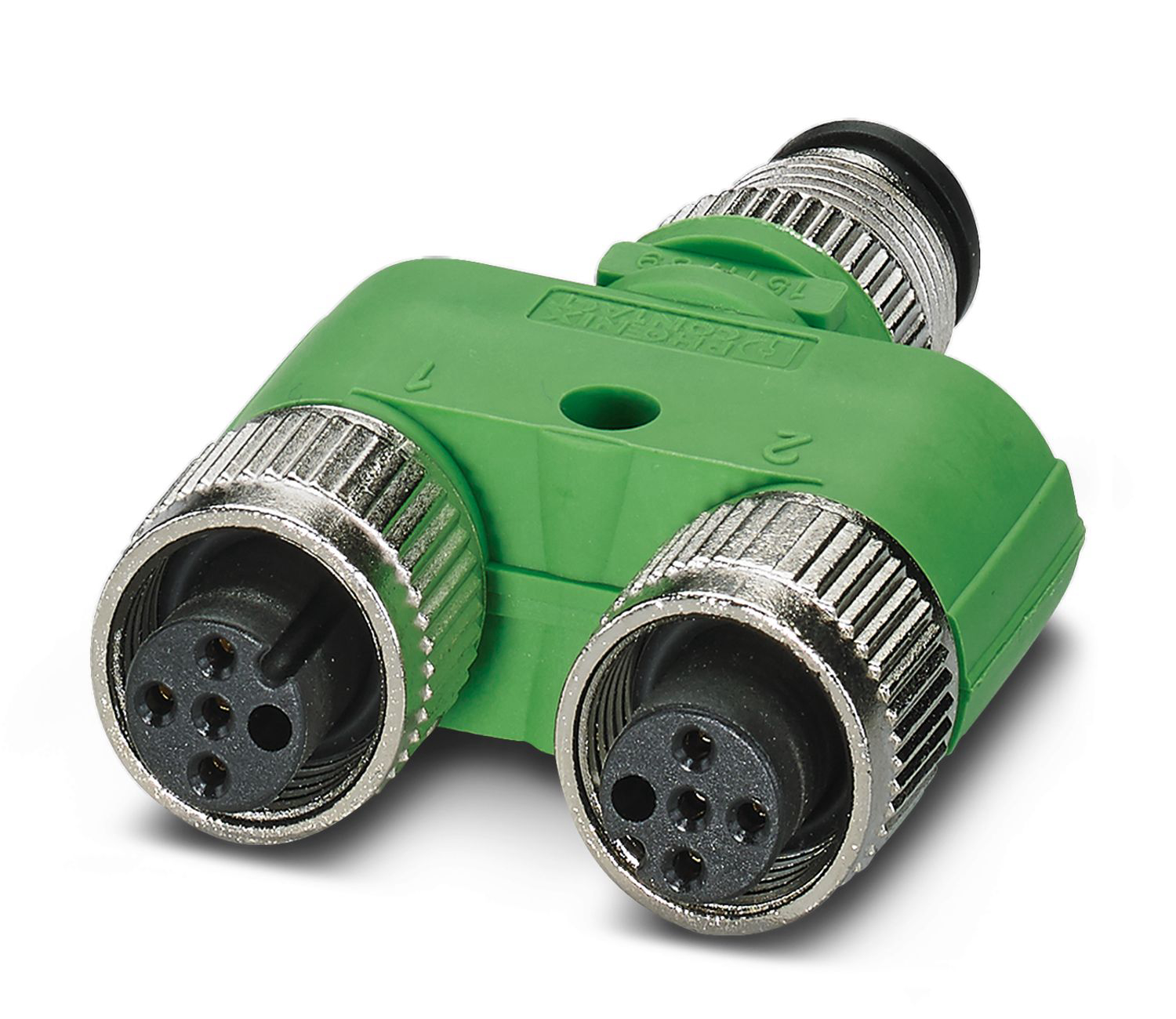

Connector Style:
Distributor Y-Shaped
Shell Size - Insert (Convert To):
M12
Shielding:
Unshielded
Number of Positions (Convert To):
4 (3 + PE) (2)
Voltage Rating:
60V
Housing Color:
Green
Material Flammability Rating:
UL94 HB
Shell Size - Insert (Convert From):
M12
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Twist
standardLeadTime:
8 Weeks
Current Rating (Amps):
4A
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Series:
SAC
Convert To (Adapter End):
Female Sockets (2)
Orientation (Convert To):
A
ECCN:
EAR99
