HTSUS:
8536.69.4020
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Operating Temperature:
-25°C ~ 125°C
Shell Size, MIL:
-
Number of Positions:
4 (Power)
Contact Finish - Mating:
Silver
Backshell Material, Plating:
Polyamide (PA), Nylon
Shielding:
Unshielded
Cable Opening:
0.224" ~ 0.256" (5.70mm ~ 6.50mm)
Voltage Rating:
-
Current Rating (Amps):
5A
Applications:
Telecommunications
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Package:
Bag
Shell Size - Insert:
12

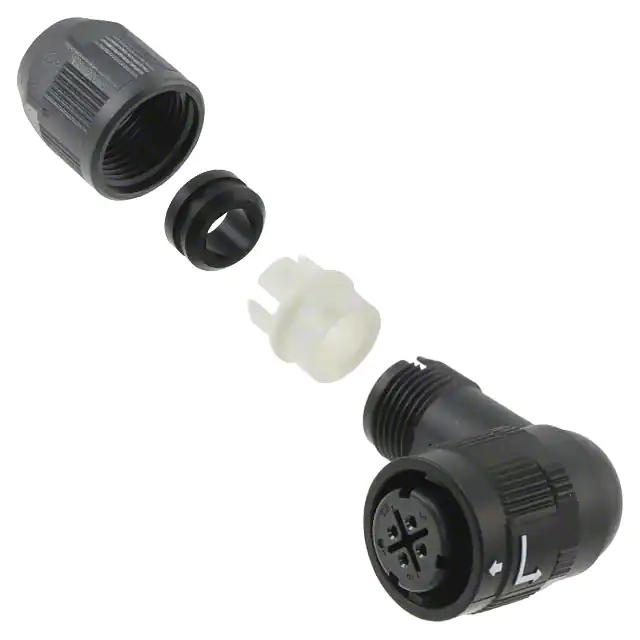

Connector Type:
Plug, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Bayonet Lock
Shell Material:
Zinc Alloy
Termination:
Solder Cup
Insert Material:
Polyphenylene Sulfide (PPS)
Orientation:
N (Normal)
Ingress Protection:
IP67F/IP68F - Dust Tight, Oil Resistant, Waterproof
Features:
Backshell, Coupling Nut, Rotatable, Strain Relief
Mounting Type:
Free Hanging (In-Line), Right Angle
Shell Finish:
Chrome
Color:
Black
Series:
HR34B
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Contact Material:
Copper Alloy
Base Product Number:
HR34
ECCN:
EAR99
