Width:
70mm
Height:
34mm
Length:
202mm
Weight:
180g
Calibrated:
UKAS
Dimensions:
202 x 70 x 34mm
Battery Life:
45 h
Battery Type:
1.5V AAA
Display Type:
LCD
Model Number:

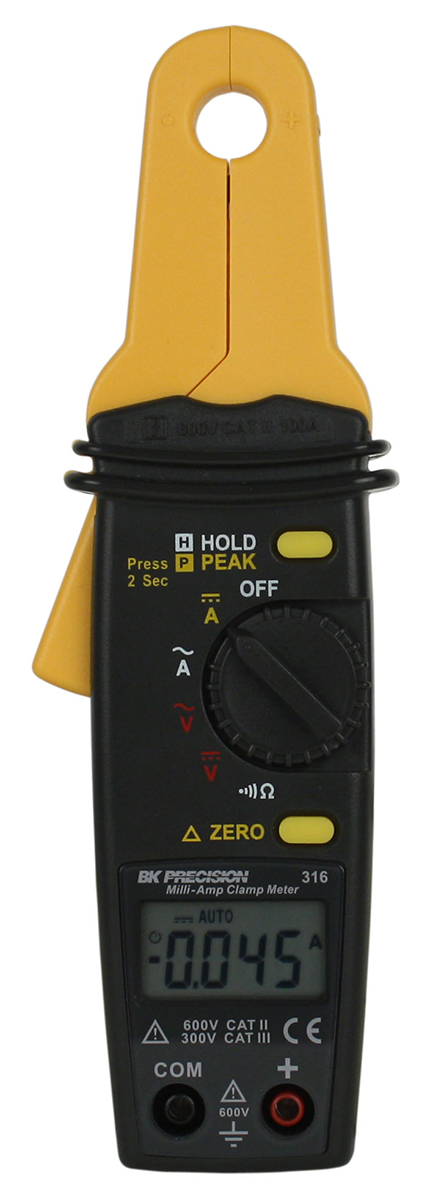

BK316
Power Source:
Battery
Safety Category:
CAT II 600 V, CAT III 300V
Clamp Meter Type:
Mini AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Safety Category Level:
CAT II, CAT III
Safety Category Voltage:
300 V, 600V
Best AC Current Accuracy:
3.5% ± 10 Digits
Best AC Voltage Accuracy:
1.5% ± 5 Digits
Best DC Current Accuracy:
4.5% ± 10 Digits
Best DC Voltage Accuracy:
1% ± 2 Digits
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
1mA
AC Voltage Measurement Resolution:
100mV
DC Current Measurement Resolution:
1mA
DC Voltage Measurement Resolution:
100mV
Resistance Measurement Resolution:
1Ω
Best Resistance Measurement Accuracy:
1% ± 3 Digits
Absolute Maximum AC Current Measurement:
100A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
100A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
10kΩ
