Dimensions:
207 x 75 x 34mm
Power Source:
Battery
Maximum Conductor Size:
30mm
Width:
75mm
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
100mA
Absolute Maximum AC Voltage Measurement:
600V ac

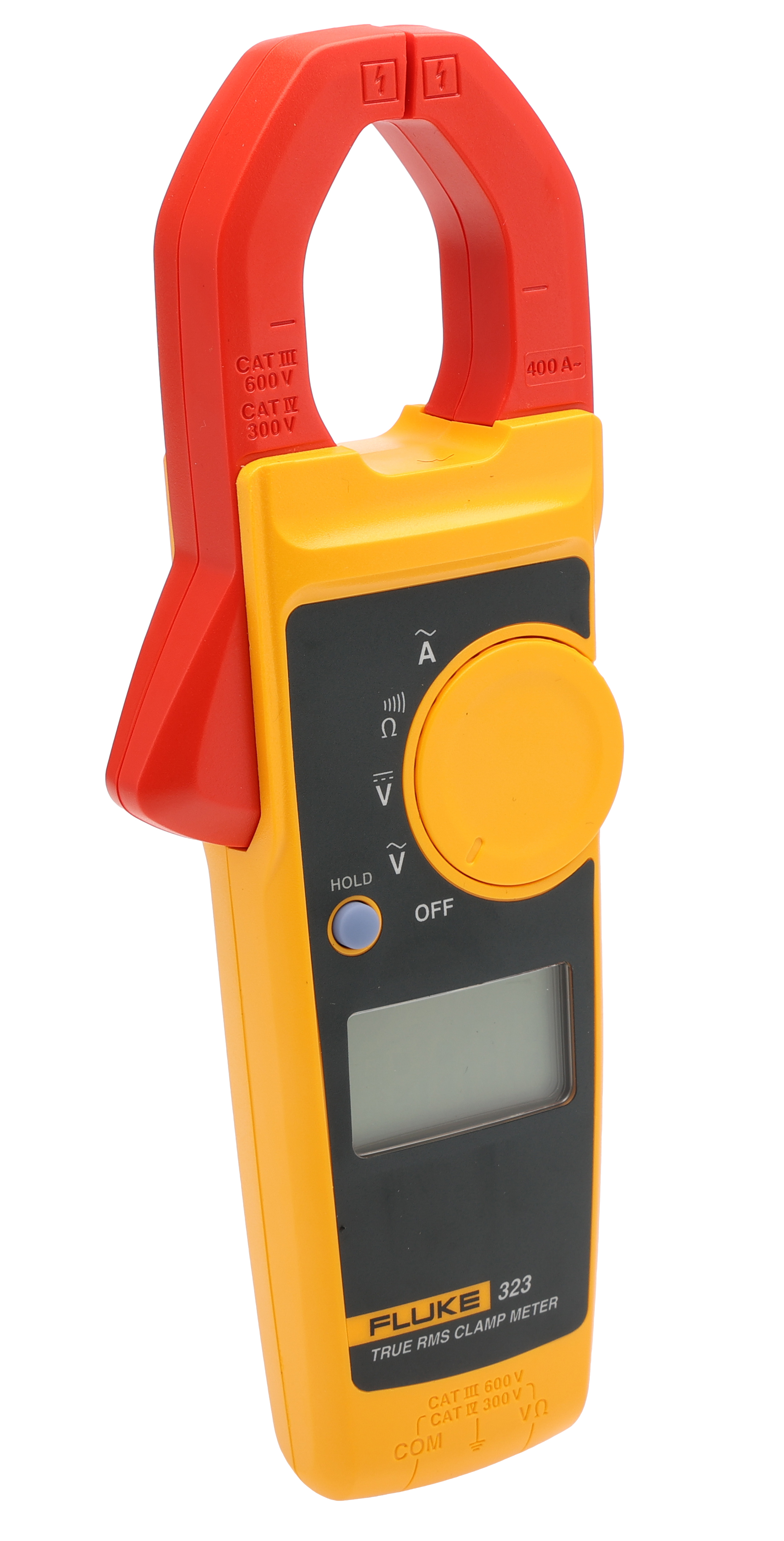

Model Number:
323
Best AC Voltage Accuracy:
±(1.5% rdg +5 Digits)
Absolute Maximum AC Current Measurement:
400A ac
Battery Type:
AAA
Absolute Maximum Resistance Measurement:
400Ω
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-10°C
Safety Category Level:
CAT III, CAT IV
Length:
207mm
Display Type:
LCD
Jaw Capacity Busbars:
30mm
Weight:
265g
AC Voltage Measurement Resolution:
100mV
Best AC Current Accuracy:
±(2% rdg +5 Digits)
Safety Category Voltage:
300 V, 600 V
Absolute Maximum DC Voltage Measurement:
600V dc
Height:
34mm
Safety Category:
CAT III 600V, CAT IV 300V
Best DC Voltage Accuracy:
±(1% rdg +5 Digits)
DC Voltage Measurement Resolution:
100mV
Clamp Meter Type:
AC Current Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity, DC Voltage, Resistance
