True RMS:
Yes
Display Type:
LCD
Model Number:

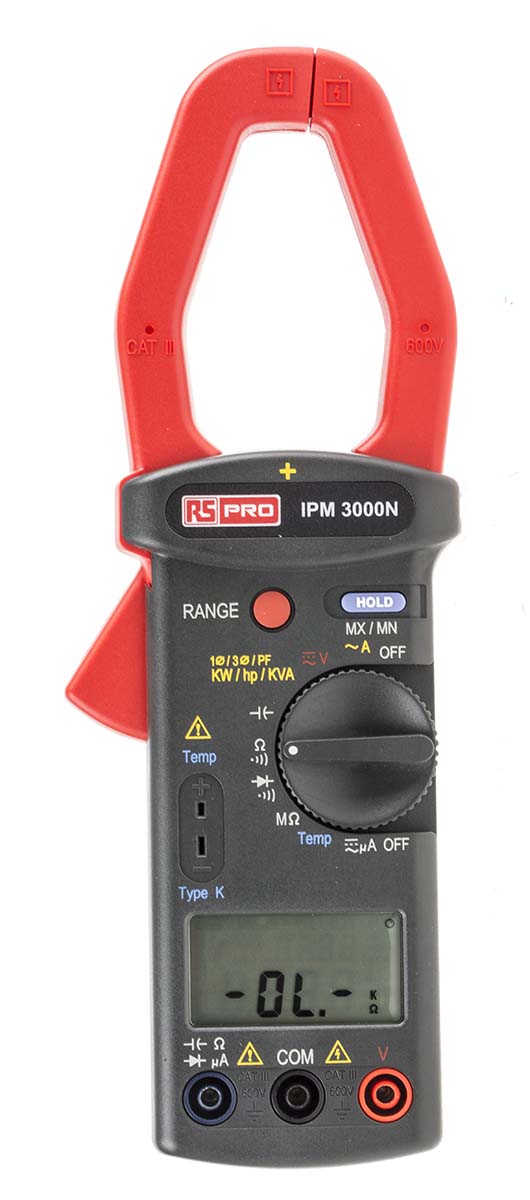

IPM3000N
Clamp Meter Type:
HVAC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Voltage, Frequency, Power, Resistance, Temperature
Jaw Capacity Busbars:
40mm
Best AC Current Accuracy:
±(2% rdg + 20dgts)
Best AC Voltage Accuracy:
±(1% rdg + 20dgts)
Best DC Voltage Accuracy:
±(1% rdg + 20dgts)
AC Current Measurement Resolution:
10mA
AC Voltage Measurement Resolution:
100µV
DC Voltage Measurement Resolution:
100µV
Resistance Measurement Resolution:
100mΩ
Temperature Measurement Resolution:
0.1 °C, 0.1 °F
Best Resistance Measurement Accuracy:
1 % ± 10 Digits
Best Temperature Measurement Accuracy:
1 % ± 1 °C, 1 % ± 2 °F
Absolute Maximum AC Current Measurement:
1000A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
999.9kΩ
Absolute Maximum Temperature Measurement:
+1000 °F, +900°C
