Width:
48mm
Height:
200mm
Length:
83mm
Weight:
375g
Dimensions:
83 x 48 x 200mm
Battery Life:
250 h
Battery Type:
9V, IEC 6F22, NEDA 1604
Model Number:

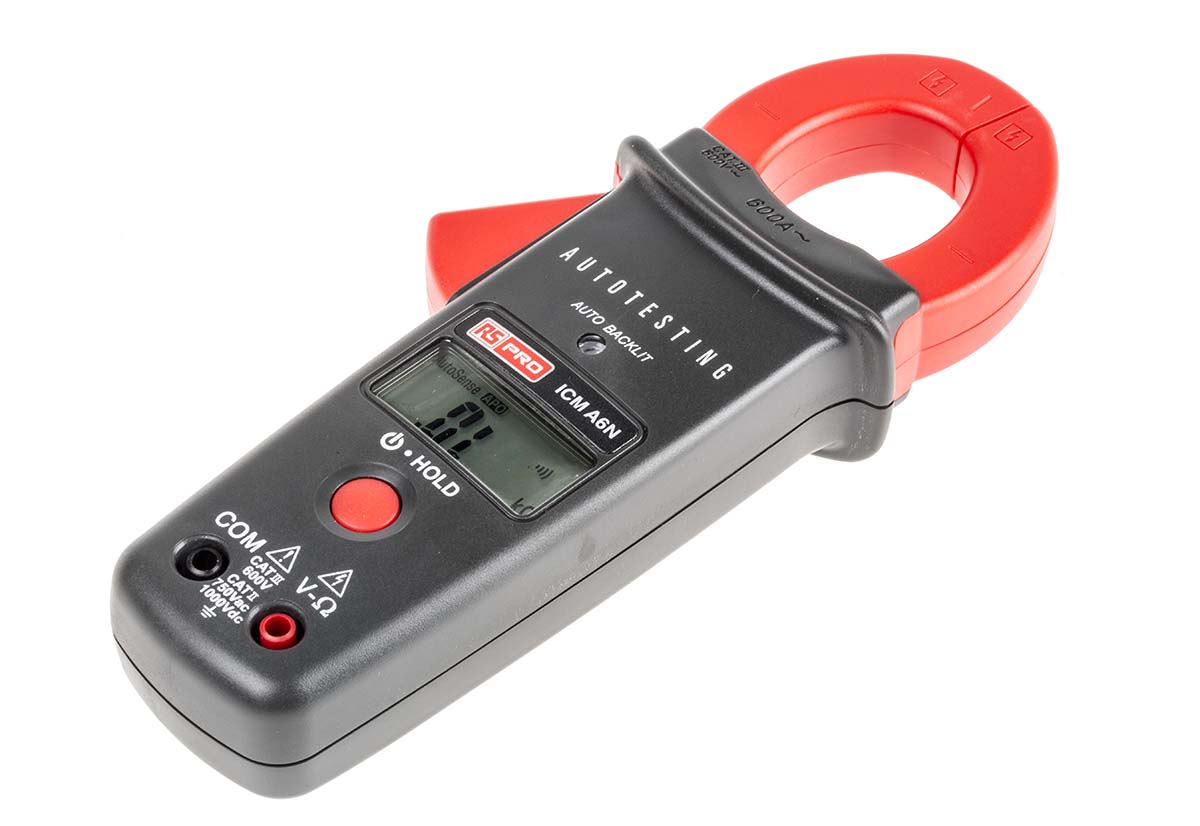

ICMA6
Power Source:
Battery
Safety Category:
CAT II 1000 V, CAT III 600 V
Clamp Meter Type:
AC Current Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance
Jaw Capacity Busbars:
32mm
Safety Category Level:
CAT II, CAT III
Maximum Conductor Size:
32 (Dia.)mm
Safety Category Voltage:
600 V, 1000 V
Best AC Current Accuracy:
±(1.9% rdg + 5dgts)
Best AC Voltage Accuracy:
±(1.5% rdg + 3dgts)
Best DC Voltage Accuracy:
±(1% rdg + 2dgts)
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-20°C
AC Current Measurement Resolution:
100mA
AC Voltage Measurement Resolution:
100mV
DC Voltage Measurement Resolution:
100mV
Best Resistance Measurement Accuracy:
±2% + 2 Digits
Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
2kΩ
