Width:
42mm
Height:
222mm
Length:
78mm
Weight:
340g
True RMS:
Yes
Dimensions:
78 x 42 x 222mm
Battery Life:
130 h
Battery Type:
9V 6LR61
Display Type:
Backlit LCD

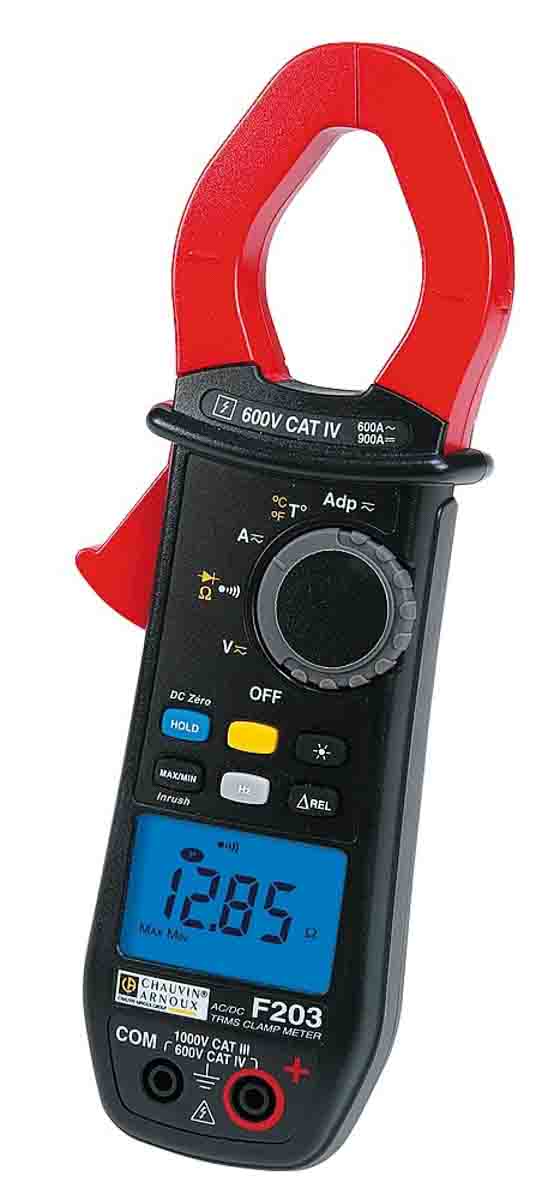

Model Number:
F203
Power Source:
Battery
Safety Category:
CAT III 1000 V, CAT IV 600V
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, In-Rush Current, Resistance, Temperature
Jaw Capacity Busbars:
34mm
Safety Category Level:
CAT IV
Maximum Conductor Size:
34mm
Safety Category Voltage:
600V
Best AC Current Accuracy:
±(1% rdg + 3dgts)
Best AC Voltage Accuracy:
±(1% rdg + 3dgts)
Best DC Current Accuracy:
±(1% rdg + 3dgts)
Best DC Voltage Accuracy:
±(1% rdg + 3dgts)
Maximum Operating Temperature:
+55°C
Minimum Operating Temperature:
-20°C
AC Current Measurement Resolution:
0.01A
AC Voltage Measurement Resolution:
0.01V
DC Current Measurement Resolution:
0.01A
DC Voltage Measurement Resolution:
0.01V
Resistance Measurement Resolution:
100mΩ
Temperature Measurement Resolution:
0.1°C
Best Resistance Measurement Accuracy:
±1 % + 5 digits
Best Temperature Measurement Accuracy:
±1% +3°C
Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum AC Voltage Measurement:
1000V ac
Absolute Maximum DC Current Measurement:
900A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
59.99kΩ
Absolute Maximum Temperature Measurement:
+1000°C
