Width:
28mm
Height:
188mm
Length:
56mm
Weight:
225g
Dimensions:
56 x 28 x 188mm
Battery Life:
200 h
Battery Type:
1.5 A Alkaline
Display Type:
LCD

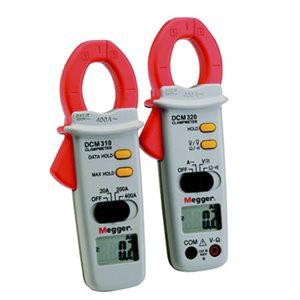

Model Number:
DCM320
Power Source:
Battery
Safety Category:
CAT III 600V
Clamp Meter Type:
AC Current Clamp Meter
Functions Measured:
AC Current
Jaw Capacity Busbars:
27mm
Safety Category Level:
CAT III
Maximum Conductor Size:
27mm
Safety Category Voltage:
600V
Best AC Current Accuracy:
±(2% rdg + 5dgts)
Best AC Voltage Accuracy:
±(1.5% rdg + 5dgts)
Best DC Voltage Accuracy:
±(1% rdg + 2dgts)
AC Current Measurement Range:
0 → 400 A
AC Voltage Measurement Range:
200 → 600 V
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
100mA
AC Voltage Measurement Resolution:
100mV
DC Voltage Measurement Resolution:
100mV
Best Resistance Measurement Accuracy:
±1.9% ±5 Digits
Best Temperature Measurement Accuracy:
>80 %
Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
20MΩ
Absolute Maximum Temperature Measurement:
+50°C
