Width:
46mm
Height:
271mm
Length:
112mm
Weight:
647g
True RMS:
Yes
Calibrated:
RSCAL
Dimensions:
112 x 46 x 271mm
Battery Type:
9V, IEC 6F22, NEDA 1604
Display Type:
LCD
Model Number:

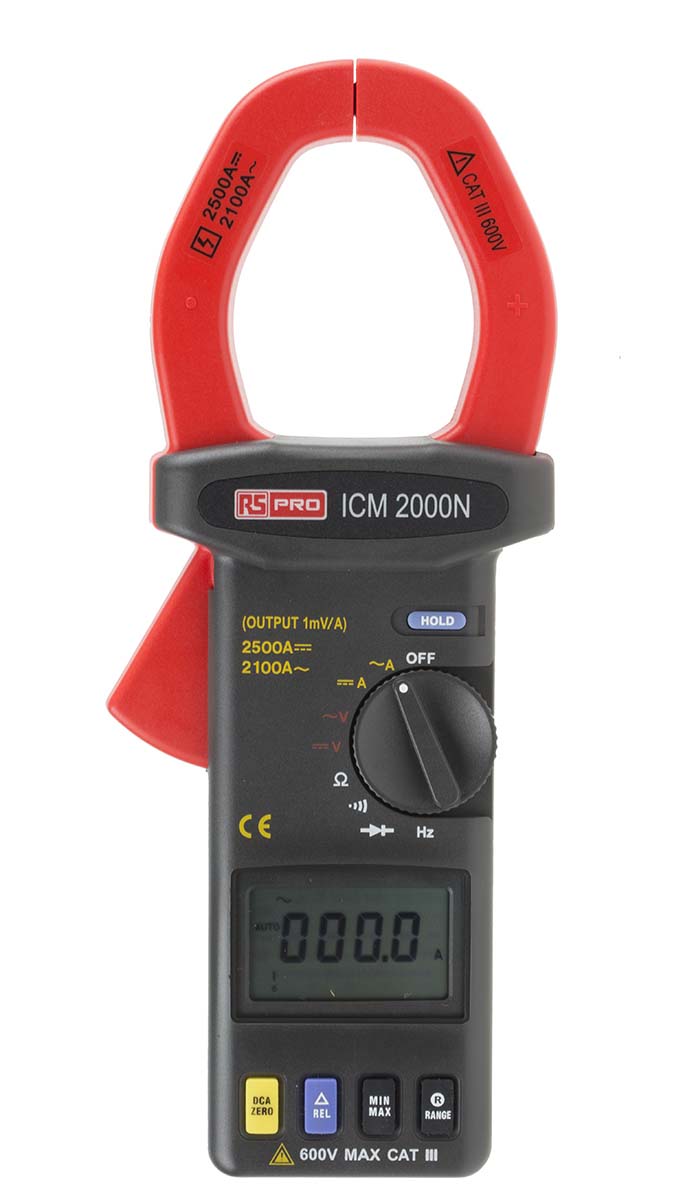

ICM2000N
Power Source:
Battery
Safety Category:
CAT III 600 V
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Jaw Capacity Busbars:
65 (Dia.) x 24 (W)mm
Safety Category Level:
CAT III
Maximum Conductor Size:
55mm
Safety Category Voltage:
600V
Best AC Current Accuracy:
±1.5 % ± 5 Digits
Best AC Voltage Accuracy:
±1.5 % ± 5 Digits
Best DC Current Accuracy:
±1.5 % ± 3 Digits
Best DC Voltage Accuracy:
±1 % ± 3 Digits
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1A
AC Voltage Measurement Resolution:
0.001V
DC Current Measurement Resolution:
0.1A
DC Voltage Measurement Resolution:
0.1mV
Resistance Measurement Resolution:
100mΩ
Best Resistance Measurement Accuracy:
±1.5 % ± 3 Digits
Absolute Maximum AC Current Measurement:
2100A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
2500A dc
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
40MΩ
