Width:
31mm
Height:
192mm
Length:
64mm
Weight:
250g
Calibrated:
UKAS
Dimensions:
64 x 31 x 192mm
Battery Life:
100 h
Battery Type:
AA
Display Type:
LCD

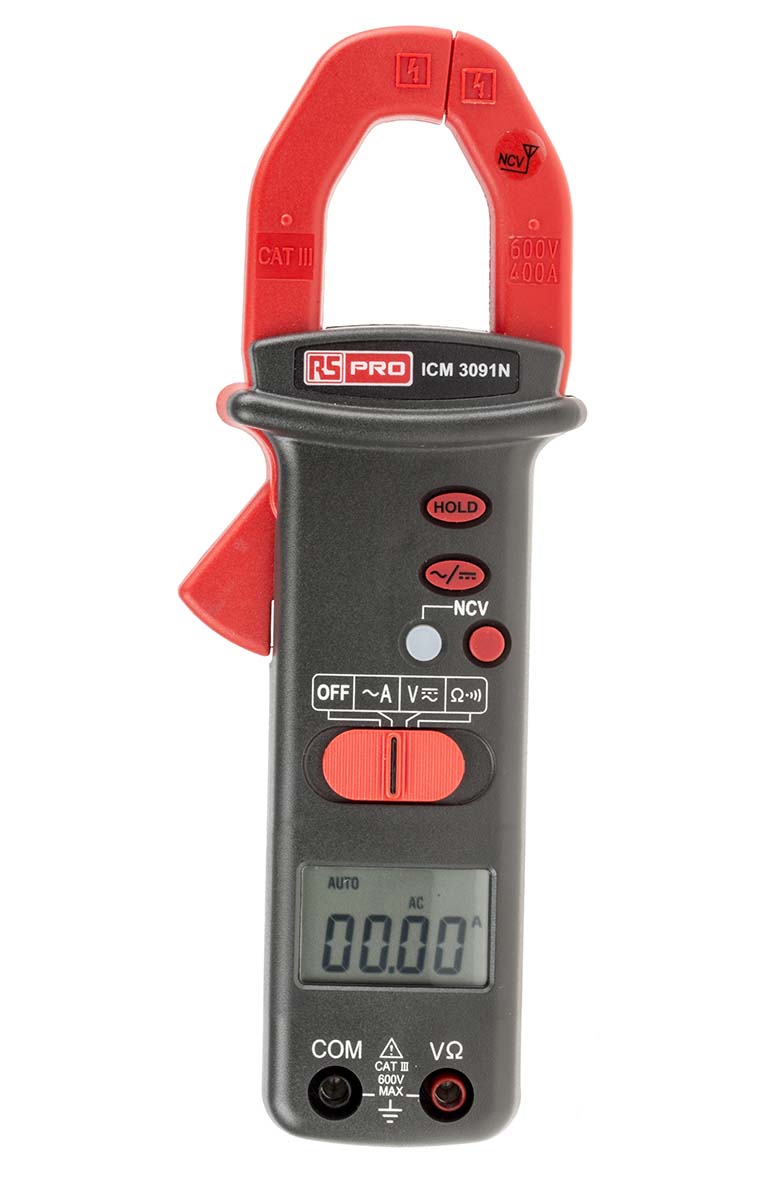

Model Number:
ICM3091N
Power Source:
Battery
Clamp Meter Type:
AC Current Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity Beeper, DC Voltage, Resistance
Jaw Capacity Busbars:
25.4 (Cable Dia.)mm
Best AC Current Accuracy:
±2 % + 10 Digits
Best AC Voltage Accuracy:
±1.5 % + 10 Digits
Best DC Voltage Accuracy:
±1 % + 5 Digits
Non-Contact Voltage Detector:
Yes
Maximum Operating Temperature:
+40°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.01A
AC Voltage Measurement Resolution:
0.1V
DC Voltage Measurement Resolution:
0.1V
Resistance Measurement Resolution:
100mΩ
Best Resistance Measurement Accuracy:
±1 % + 5 Digits
Absolute Maximum AC Current Measurement:
400A ac
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
400Ω
