Width:
51mm
Height:
275mm
Length:
90mm
Weight:
420g
True RMS:
Yes
Calibrated:
UKAS
Dimensions:
90 x 51 x 275mm
Battery Life:
300 h
Battery Type:
9V, IEC 6F22, NEDA 1604
Display Type:
LCD

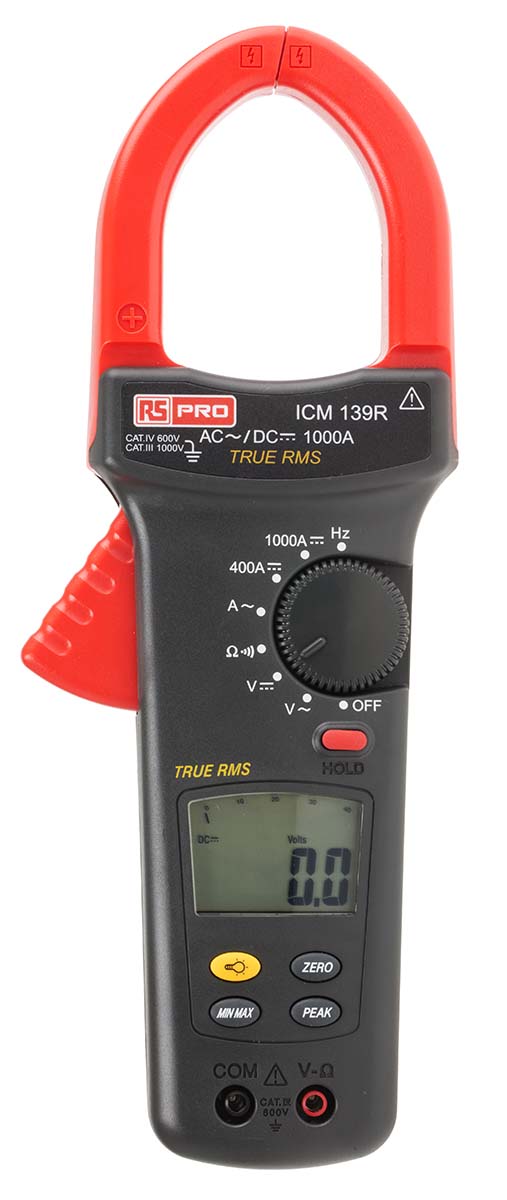

Model Number:
ICM139R
Power Source:
Battery
Safety Category:
CAT III 1000 V, CAT IV 600 V
Clamp Meter Type:
AC/DC Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance
Jaw Capacity Busbars:
53mm
Safety Category Level:
CAT III, CAT IV
Maximum Conductor Size:
51 (Dia.)mm
Safety Category Voltage:
600 V, 1000 V
Best AC Current Accuracy:
±1.9% +5 digits
Best AC Voltage Accuracy:
±1% + 5 Digits
Best DC Current Accuracy:
±1.9% + 5 Digits
Best DC Voltage Accuracy:
±0.7% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
0°C
AC Current Measurement Resolution:
0.1A
AC Voltage Measurement Resolution:
100mV
DC Current Measurement Resolution:
0.1A
DC Voltage Measurement Resolution:
100mV dc
Resistance Measurement Resolution:
100mΩ
Best Resistance Measurement Accuracy:
±1% + 3 Digits
Absolute Maximum AC Current Measurement:
1000A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Current Measurement:
1000A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum Resistance Measurement:
400Ω
