Width:
48mm
Height:
200mm
Length:
83mm
Weight:
375g
Calibrated:
RSCAL
Dimensions:
83 x 48 x 200mm
Battery Life:
250 h
Battery Type:
9V, IEC 6F22, NEDA 1604

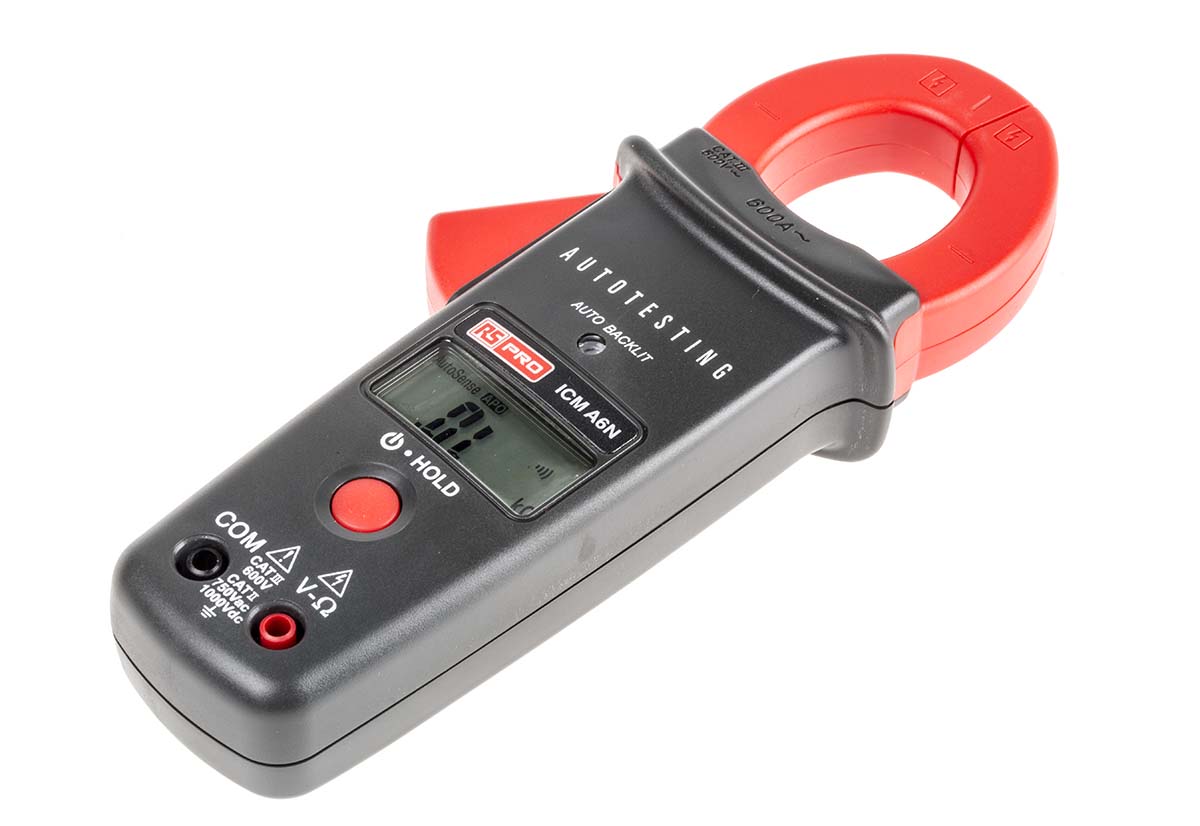

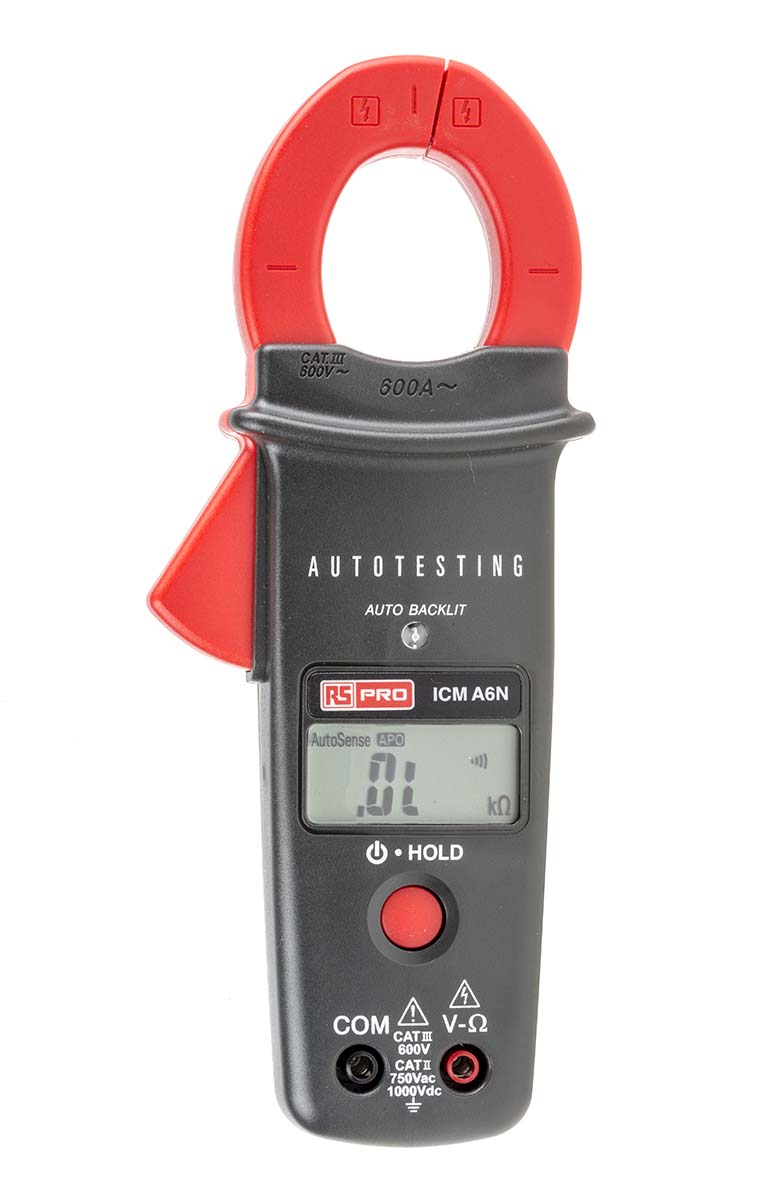

Model Number:
ICMA6
Power Source:
Battery
Safety Category:
CAT II 1000 V, CAT III 600 V
Clamp Meter Type:
AC Current Clamp Meter
Functions Measured:
AC Current, AC Voltage, Continuity, DC Voltage, Diode Test, Resistance
Jaw Capacity Busbars:
38 (Dia.)mm
Safety Category Level:
CAT II, CAT III
Maximum Conductor Size:
32 (Dia.)mm
Safety Category Voltage:
600 V, 1000 V
Best AC Current Accuracy:
±1.9%+ 5 Digits
Best AC Voltage Accuracy:
±1.5% + 3 Digits
Best DC Voltage Accuracy:
±1% + 2 Digits
Maximum Operating Temperature:
+50°C
Minimum Operating Temperature:
-20°C
Best Resistance Measurement Accuracy:
±2% + 2 Digits
Absolute Maximum AC Current Measurement:
600A ac
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Voltage Measurement:
999.9V dc
Absolute Maximum Resistance Measurement:
2kΩ
