Dimensions:
225 x 65 x 46mm
Power Source:
Battery
DC Current Measurement Resolution:
100mA
Maximum Conductor Size:
18mm
Width:
65mm
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
100mA
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac
Model Number:
365
Best AC Voltage Accuracy:
±(1.5% rdg +5 Digits)
Absolute Maximum AC Current Measurement:
200A ac
Battery Type:
AA
Absolute Maximum Resistance Measurement:
6kΩ
Maximum Operating Temperature:
+50°C
Jaw Capacity Busbars:
18mm
Safety Category Level:
CAT III
Length:
225mm
Absolute Maximum DC Current Measurement:
200A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1% +5 Digits
Best DC Current Accuracy:
±(2% rdg +5 Digits)
Weight:
275g
AC Voltage Measurement Resolution:
100mV
Best AC Current Accuracy:
±(2% rdg +5 Digits)
Safety Category Voltage:
600V
Absolute Maximum DC Voltage Measurement:
600V dc
Height:
46mm
Safety Category:
CAT III 600 V
Best DC Voltage Accuracy:
±(1% rdg +5 Digits)
DC Voltage Measurement Resolution:
100mV

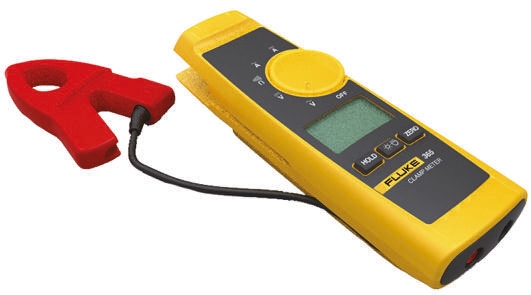

Clamp Meter Type:
Detachable Jaw Clamp Meter
Minimum Operating Temperature:
-10°C
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Resistance
