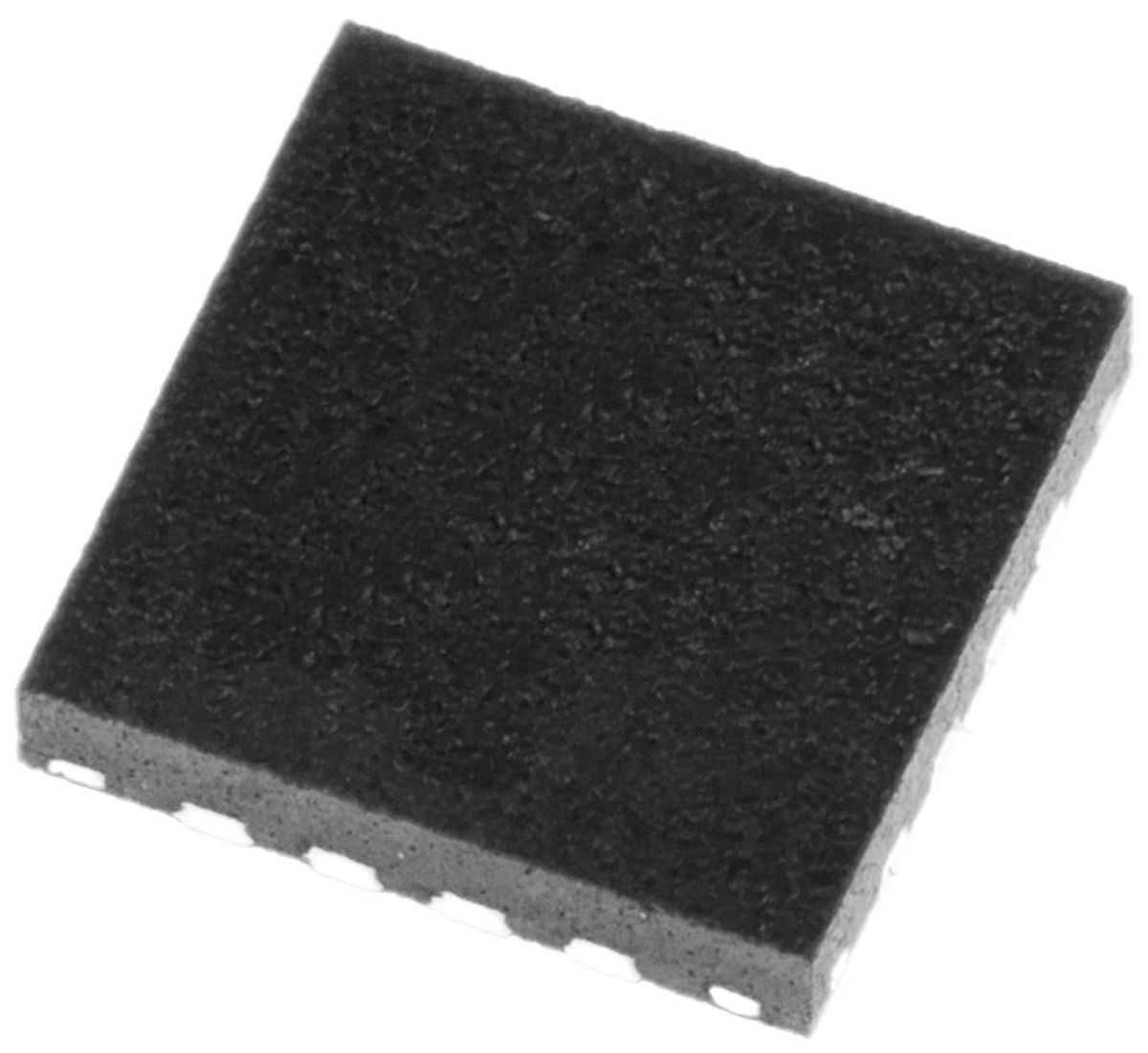

NB4N527SMNG, Clock Generator LVCMOS, LVTTL, 1-Input, 16-Pin QFN

NB4N527SMNG , Clock Generator LVCMOS, LVTTL, 1-Input, 16-Pin QFN
NB4N527SMNG
NB4N527SMNG
onsemi

Product Information

Output Logic Level:
LVDS
Dimensions:
3 x 3 x 0.95mm
Mounting Type:
Surface Mount
Input Signal Type:
CML, HSTL, LVCMOS, LVDS, LVPECL, LVTTL
Logic Function:
Buffer, Clock, Translator
Operation Mode:
Differential
Logic Family:
LVCMOS, LVTTL
Height:
0.95mm
Width:
3mm
Length:
3mm
Package Type:
QFN
Minimum Operating Temperature:
-40 °C
Number of Clock Inputs:
1
Maximum Operating Supply Voltage:
3.8 V
Maximum Operating Temperature:
+85 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Supply Voltage:
3V ~ 3.6V
Package / Case:
16-VFQFN Exposed Pad
Number of Bits:
2
REACH Status:
REACH Unaffected
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
28 Weeks
Mounting Type:
Surface Mount
Series:
-
Logic Type:
Receiver, Driver, Buffer, Translator
Supplier Device Package:
16-QFN (3x3)
Base Product Number:
NB4N527
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Clock Generator LVCMOS LVTTL 1-Input 16-Pin QFN manufactured by onsemi. The manufacturer part number is NB4N527SMNG. The given dimensions of the product include 3 x 3 x 0.95mm. The product is available in surface mount configuration. In addition, the height is 0.95mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. Moreover, the product comes in [Package/ Case]. The product consists of 2 bits. In addition, it is reach unaffected. It is shipped in tube. Its typical moisture sensitivity level is 1 (unlimited). It has a long 28 weeks standard lead time. The product is a receiver, driver, buffer, translator logic type. 16-qfn (3x3) is the supplier device package value. Moreover, it corresponds to nb4n527, a base product number of the product. The product is designated with the ear99 code number

pdf icon
NB4N527S Receiver/Driver/Buffer/Translator with Internal Input Termination(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
NB4N527S(Datasheets)
pdf icon
Lead Finish/BOM Update 10/Jul/2015(PCN Design/Specification)
pdf icon
onsemi RoHS(Environmental Information)
