Amphenol RF 122160-11

122160-11 Amphenol RF
122160-11
Amphenol RF

Product Information

Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-65°C ~ 165°C
Connector Style:
TNC
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
0.18dB
Center Contact Plating:
Gold
Voltage Rating:
500 V
REACH Status:
REACH Affected
Includes:

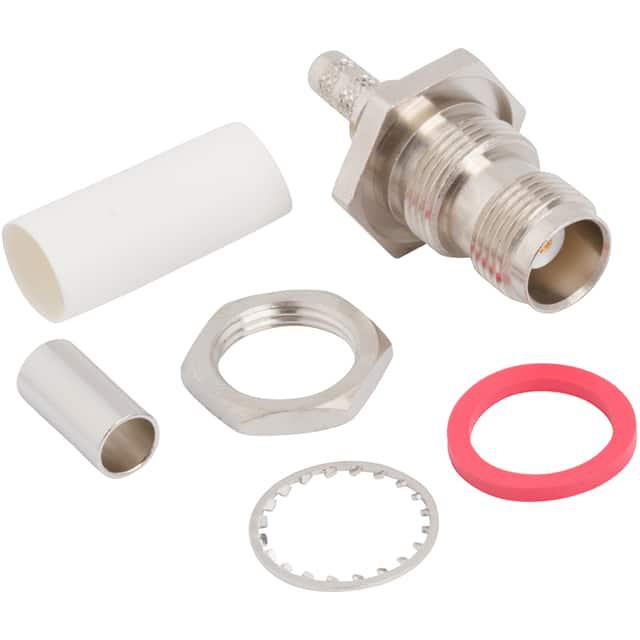

6 pcs - 1 Connector, 1 Ferrule, 1 Gasket, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Frequency - Max:
11 GHz
Housing Color:
Silver
Impedance:
50Ohm
Cable Group:
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
Package:
Bulk
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount
Series:
-
Contact Termination:
Solder
Base Product Number:
122160
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol RF. The manufacturer part number is 122160-11. It has a crimp shield termination. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs3 compliant. The product's mounting feature includes bulkhead - front side nut. The phosphor bronze material is utilised for designing its center contacts. The product has -65°c ~ 165°c operating temperature range. It comes in tnc connector style. The body is galvanized with nice finishing of nickel. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. Allows 0.18db of insertion loss. The center contact is plated with a [Center Contract Plating]. Moreover, the product has a nominal 500 v voltage rating. In addition, it is reach affected. The product is also supplied with 6 pcs - 1 connector, 1 ferrule, 1 gasket, 1 heat shrink, 1 lockwasher, 1 nut. It maximum frequency is 11 ghz. It has an integral silver housing colour. It has an impedance value of 50ohm. Cable Group Options: rg-58, 58a, 58b, 58c, 141, 303, lmr-195, belden b7806a, 9907. It is shipped in bulk. jack, female socket Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. It is IP rated with ip67 - dust tight, waterproof. The product is available in panel mount configuration. It also incorporates solder contact terminals. Moreover, it corresponds to 122160, a base product number of the product. The product is designated with the ear99 code number
