Polarity:
Reverse
Body Plating:
Gold
Body Orientation:
Straight
Cable Type:
LMR-100, M17/119-RG174, RG-174, RG-188, RG-188A, RG-316
Gender A:
Female
Operating Frequency:
12.4GHz
Length:
19.8mm
Adapter Type:
SMA
Contact Plating:
Gold
Adapter Type A:
SMA
Impedance:
50Ω
Contact Material:
Brass
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Front Side Nut
Center Contact Material:
Brass
Operating Temperature:
-65°C ~ 165°C
Connector Style:
RP-SMA
Body Finish:
Gold
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
6 Weeks
Voltage Rating:
375 V
REACH Status:
REACH Affected
Includes:

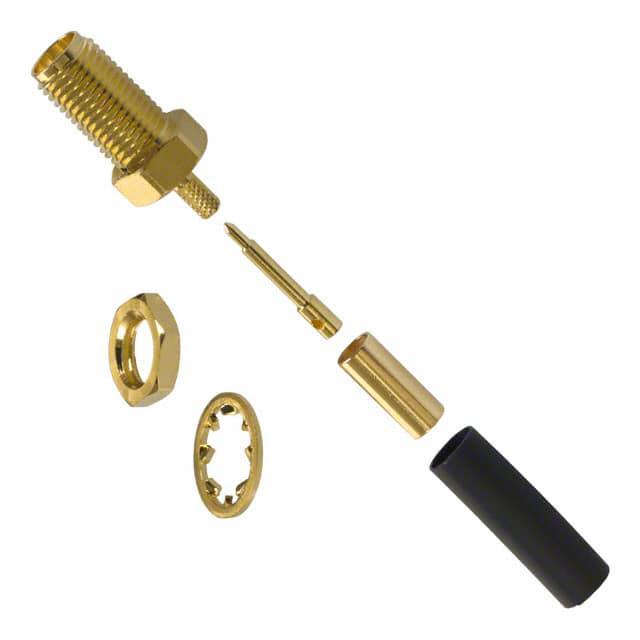

6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Lockwasher, 1 Nut
Frequency - Max:
12.4 GHz
Housing Color:
Gold
Impedance:
50Ohm
Cable Group:
RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
Package:
Bulk
Connector Type:
Jack, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
Weatherproof
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Solder
Base Product Number:
132119
ECCN:
EAR99
