Polarity:
Normal
Body Plating:
Nickel
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Cable Type:
BELDEN 1855A, BELDEN 1865A, BELDEN 4855R, RG122, RG180, RG180A, RG180B, RG195
Termination Method:
Crimp
Coaxial Connector Type:
BNC Connector
Bulkhead:
No
Contact Plating:
Gold
Series:
HD-BNC
Operating Frequency:
4GHz
Impedance:
75Ω
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+165°C
Minimum Operating Temperature:
-65°C
Size:
Standard
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-65°C ~ 165°C
Connector Style:
BNC, HD
Body Finish:
Nickel
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
8 Weeks
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:

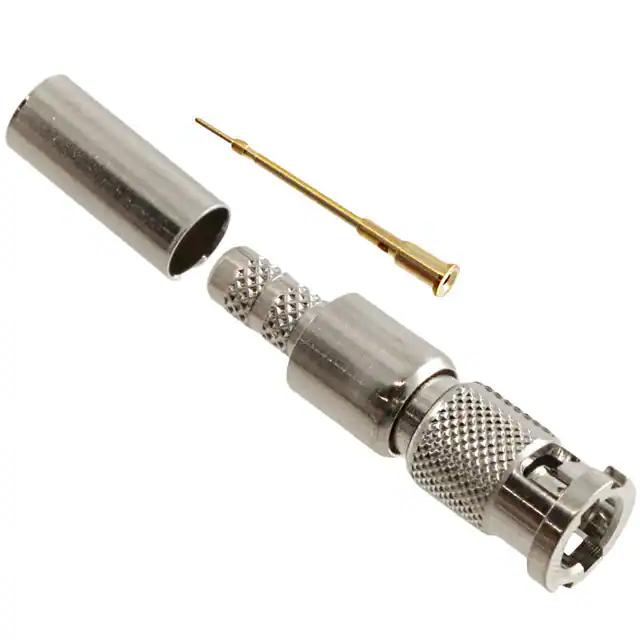

3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
75Ohm
Cable Group:
RG-122, 180, 180A, 180B, 195, Belden 1855, 1865A
Package:
Bulk
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp
Base Product Number:
034-10
ECCN:
EAR99
