Polarity:
Normal
Body Plating:
Nickel
Mounting Type:
Cable Mount
Gender:
Male
Body Orientation:
Straight
Cable Type:
M17/93-RG178, RG178, RG178A, RG178B, RG196, RG196A
Termination Method:
Crimp
Coaxial Connector Type:
BNC Connector
Bulkhead:
No
Contact Plating:
Gold
Series:
BNC
Operating Frequency:
4GHz
Impedance:
50Ω
Contact Material:
Phosphor Bronze
Maximum Operating Temperature:
+85°C
Minimum Operating Temperature:
-40°C
Size:
Standard
Shield Termination:
Crimp
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Center Contact Material:
Phosphor Bronze
Operating Temperature:
-40°C ~ 85°C
Connector Style:
BNC
Body Finish:
Nickel
Dielectric Material:
Polyoxymethylene (POM) Acetal
Insertion Loss:
0.2dB
standardLeadTime:
8 Weeks
Voltage Rating:
500 V
REACH Status:
REACH Affected

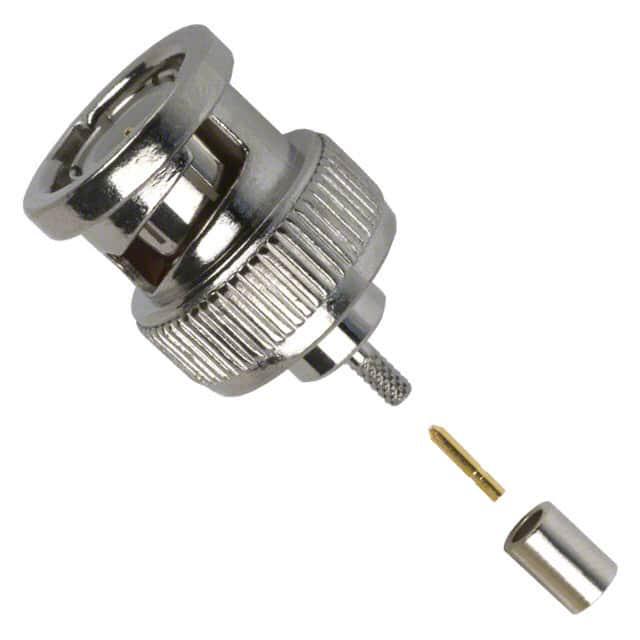

Includes:
3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
4 GHz
Housing Color:
Silver
Impedance:
50Ohm
Cable Group:
RG-178, 178A, 178B, 196, 196A, M17/93-RG178
Package:
Bag
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Bayonet Lock
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Contact Termination:
Crimp or Solder
Base Product Number:
1125
ECCN:
EAR99
