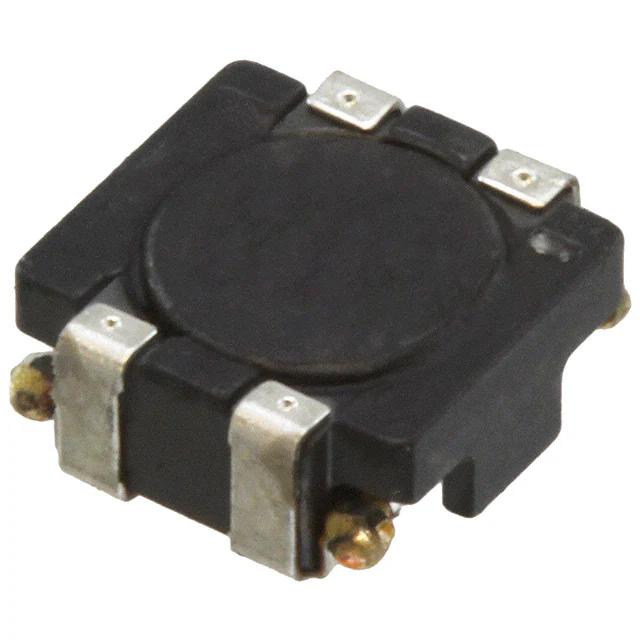

TDK Corporation ACM4520V-421-2P-T00

ACM4520V-421-2P-T00 TDK Corporation
ACM4520V-421-2P-T00
ACM4520V-421-2P-T00
TDK Corporation

Product Information

Ratings:
AEC-Q200
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Voltage Rating - DC:
50V
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
Horizontal, 4 PC Pad
Number of Lines:
2
Current Rating (Max):
1.4A
Height (Max):
0.079" (2.00mm)
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
Impedance @ Frequency:
420 Ohms @ 100 MHz
Package:
Tape & Reel (TR)
Size / Dimension:
0.185" L x 0.177" W (4.70mm x 4.50mm)
Filter Type:
Power Line
standardLeadTime:
10 Weeks
DC Resistance (DCR) (Max):
55mOhm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Surface Mount
Series:
ACM-V
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is ACM4520V-421-2P-T00. It is rated with aec-q200. It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. 50v of DC voltage rating. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. It is comprised of 2 lines. The maximum current rating is 1.4a. Additionally, the 0.079" (2.00mm) is the maximum height of the product. In addition, it is reach unaffected. It has an impedance at given frequency values; 420 ohms @ 100 mhz. It is shipped in tape & reel (tr). The product's diameters include 0.185" l x 0.177" w (4.70mm x 4.50mm). The filter is a power line type with excellent features. It has a long 10 weeks standard lead time. The product's maximum DC resistance is 55mohm. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product acm-v, is a highly preferred choice for users. The product is designated with the ear99 code number

pdf icon
ACM4520V Series(Datasheets)
pdf icon
Mult Dev Remove NRND 9/Aug/2019(PCN Part Status Change)
