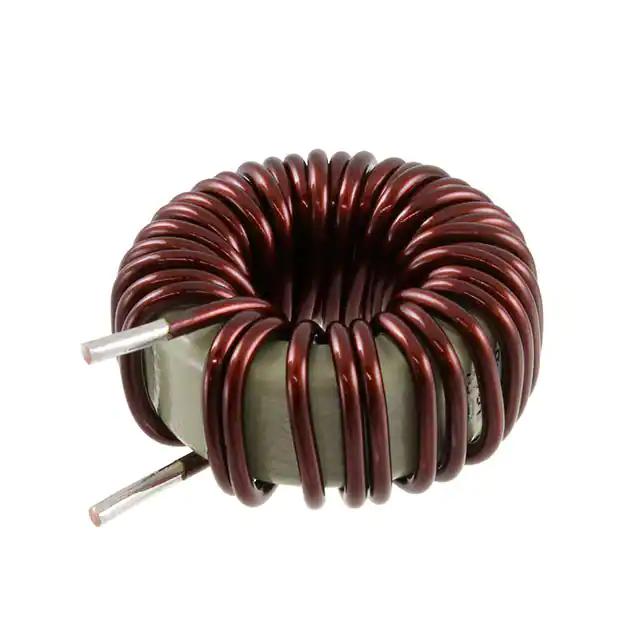

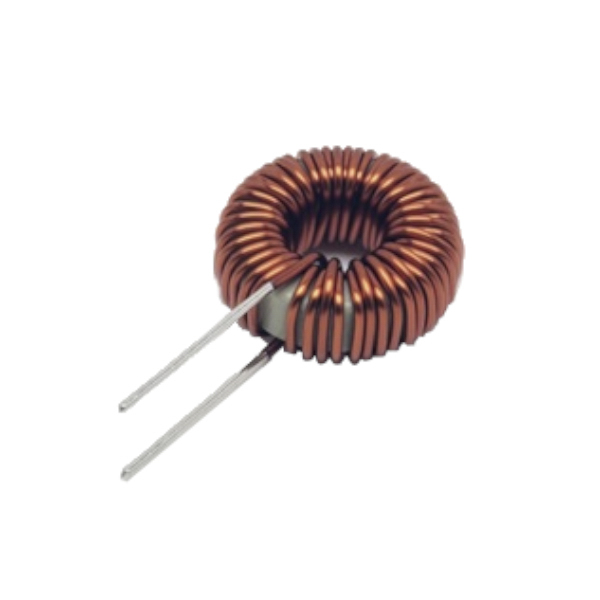

Normal Mode Choke 85.6UH 20A 0.0104R

PHBC24N-2R3A0104V Normal Mode Choke 85.6UH 20A 0.0104R
PHBC24N-2R3A0104V
KEMET

Product Information

Dimensions:
49.5 (Dia.) x 25.8mm
Mounting Type:
Through Hole
Maximum Current:
20 A
Series:
PHBC
Operating Temperature Range:
-40°C → +125°C
Termination Style:
Solder Pad
Height:
25.8mm
Test Frequency:
100 kHz
Depth:
49.5mm
Inductance:
104 μH
Maximum Operating Temperature:
+125°C
Number of Lines:
2
Minimum Operating Temperature:
-40°C
DC Resistance:
10.4mΩ
Ratings:
-
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
104 µH @ 100 kHz
Voltage Rating - DC:
-
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
Vertical, No Base, 2 PC Pin
Number of Lines:
2
Current Rating (Max):
20A
Height (Max):
1.949" (49.50mm)
Voltage Rating - AC:
-
REACH Status:
REACH Unaffected
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Filter Type:
-
standardLeadTime:
32 Weeks
Features:
-
Mounting Type:
Through Hole
Series:
PHBC
Base Product Number:
PHBC24N
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Normal Mode Choke 85.6UH 20A 0.0104R manufactured by KEMET. The manufacturer part number is PHBC24N-2R3A0104V. The given dimensions of the product include 49.5 (dia.) x 25.8mm. The product is available in through hole configuration. The product phbc, is a highly preferred choice for users. Moreover, it has solder pad terminal style. In addition, the height is 25.8mm. It features a test frequency of 100 khz. The product comes in 49.5mm depth. The product has a 104 μh inductance value. It has a maximum operating temperature of +125°c. It is comprised of 2 lines. Whereas, the minimum operating temperature of the product is -40°c. It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. Typical inductance of 104 µh @ 100 khz. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. The maximum current rating is 20a. Additionally, the 1.949" (49.50mm) is the maximum height of the product. In addition, it is reach unaffected. It is shipped in bulk. Its typical moisture sensitivity level is not applicable. It has a long 32 weeks standard lead time. Moreover, it corresponds to phbc24n, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
Specification sheet(Technical Reference)
pdf icon
Datasheet PHBC24N-2R3A0104V(Technical Reference)
pdf icon
KEM_LF0052_PHBC.pdf(Datasheets)
