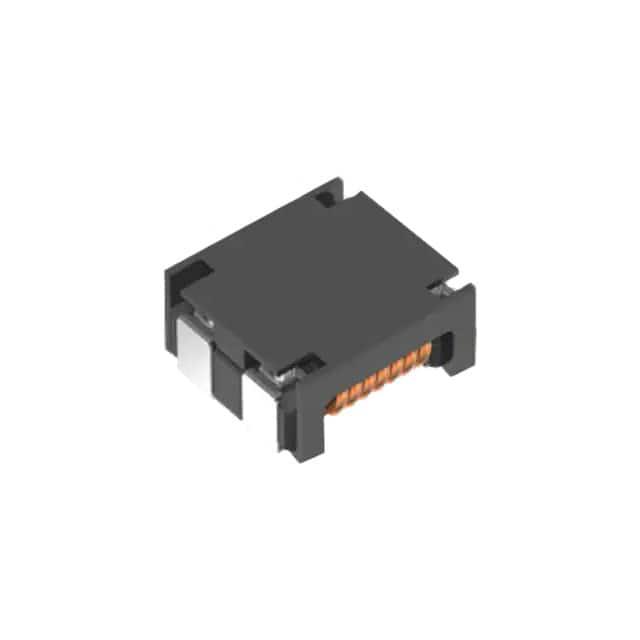

TDK Corporation ACM12V-172-2PL-TL00

ACM12V-172-2PL-TL00 TDK Corporation
TDK Corporation

Product Information

Ratings:
AEC-Q200
HTSUS:
8548.00.0000
RoHS Status:
ROHS3 Compliant
Voltage Rating - DC:
80V
Operating Temperature:
-40°C ~ 125°C
Approval Agency:
-
Package / Case:
Horizontal, 4 PC Pad
Number of Lines:
2
Current Rating (Max):
4.8A
Height (Max):
0.236" (6.00mm)
Voltage Rating - AC:
-
Impedance @ Frequency:
1.7 kOhms @ 100 MHz
Package:
Tape & Reel (TR)
Size / Dimension:
0.472" L x 0.433" W (12.00mm x 11.00mm)
Filter Type:
Power Line
standardLeadTime:
10 Weeks
DC Resistance (DCR) (Max):
12mOhm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
-
Mounting Type:
Surface Mount
Series:
ACM-V
ECCN:
EAR99
Checking for live stock

This is manufactured by TDK Corporation. The manufacturer part number is ACM12V-172-2PL-TL00. It is rated with aec-q200. It is assigned with possible HTSUS value of 8548.00.0000. The product is rohs3 compliant. 80v of DC voltage rating. The product has -40°c ~ 125°c operating temperature range. Moreover, the product comes in [Package/ Case]. It is comprised of 2 lines. The maximum current rating is 4.8a. Additionally, the 0.236" (6.00mm) is the maximum height of the product. It has an impedance at given frequency values; 1.7 kohms @ 100 mhz. It is shipped in tape & reel (tr). The product's diameters include 0.472" l x 0.433" w (12.00mm x 11.00mm). The filter is a power line type with excellent features. It has a long 10 weeks standard lead time. The product's maximum DC resistance is 12mohm. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The product acm-v, is a highly preferred choice for users. The product is designated with the ear99 code number

pdf icon
Mult Devs Material Supplier 02/Jun/2022(PCN Assembly/Origin)
pdf icon
ACM12V Series(Datasheets)
