Typical Dual Supply Voltage:
±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Comparator Type:
Differential
Dimensions:
3 x 3 x 0.97mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Typical Single Supply Voltage:
3 → 28 V
Output Type:
Open Collector
Height:
0.97mm
Width:
3mm
Length:
3mm

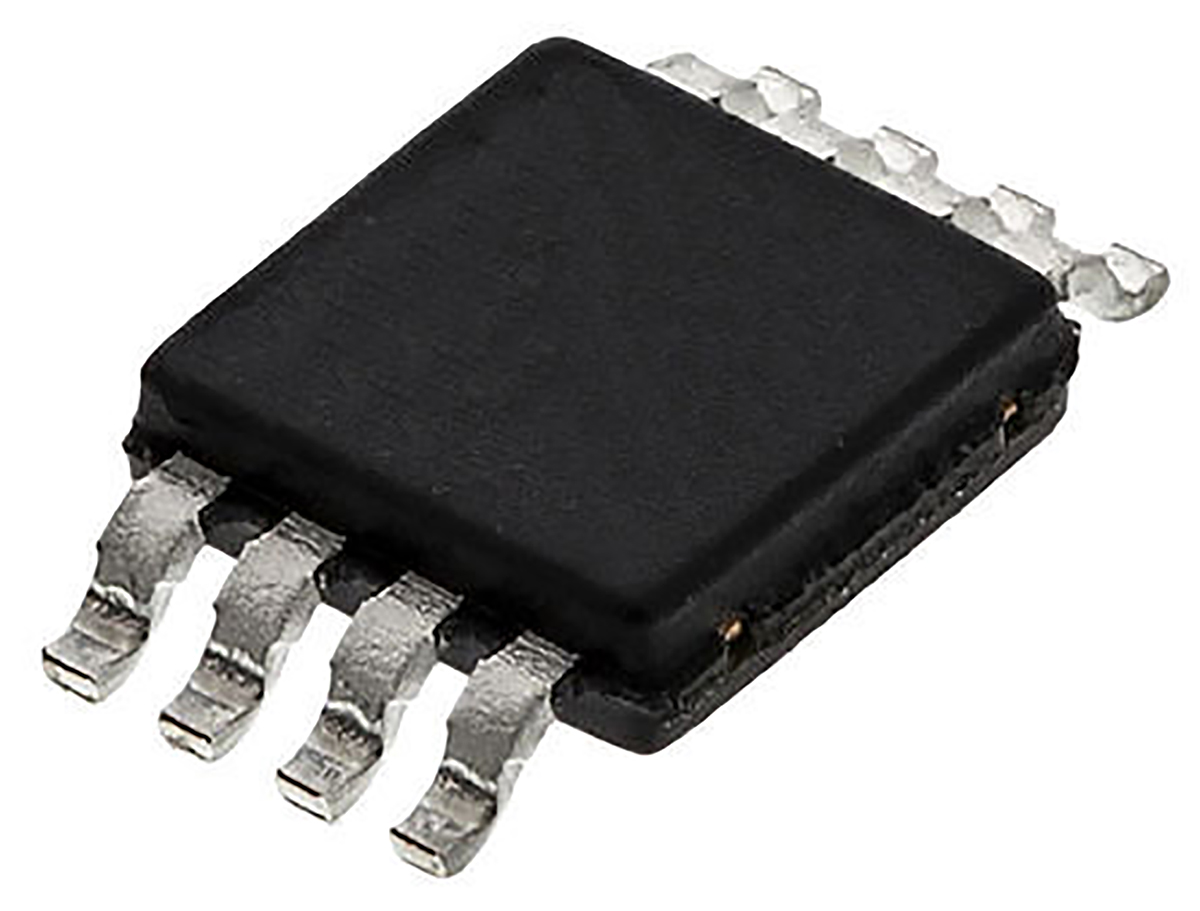

Package Type:
MSOP
Minimum Operating Temperature:
-40 °C
Typical Response Time:
1.3µs
Typical Voltage Gain:
100 dB
Maximum Operating Temperature:
+125 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
0.25µA @ 5V
Current - Quiescent (Max):
2.5mA
Operating Temperature:
-40°C ~ 125°C
Voltage - Supply, Single/Dual (±):
2V ~ 36V, ±1V ~ 18V
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Type:
Differential
Propagation Delay (Max):
-
REACH Status:
REACH Unaffected
Output Type:
CMOS, MOS, Open-Drain, TTL
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tape & Reel (TR)
Voltage - Input Offset (Max):
7mV @ 30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
20mA
standardLeadTime:
6 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-VSSOP
Number of Elements:
2
Base Product Number:
LM2903
ECCN:
EAR99
