Automotive Standard:
AEC-Q001, AEC-Q002, AEC-Q003, AEC-Q100
Typical Dual Supply Voltage:
±1 to ±16V
Comparator Type:
Low Power
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Number of Channels per Chip:
4
Typical Single Supply Voltage:
2 → 32 V
Output Type:
CMOS, DTL, ECL, MOS, TTL
Height:
0.95mm
Width:
3.1mm
Length:
3.1mm

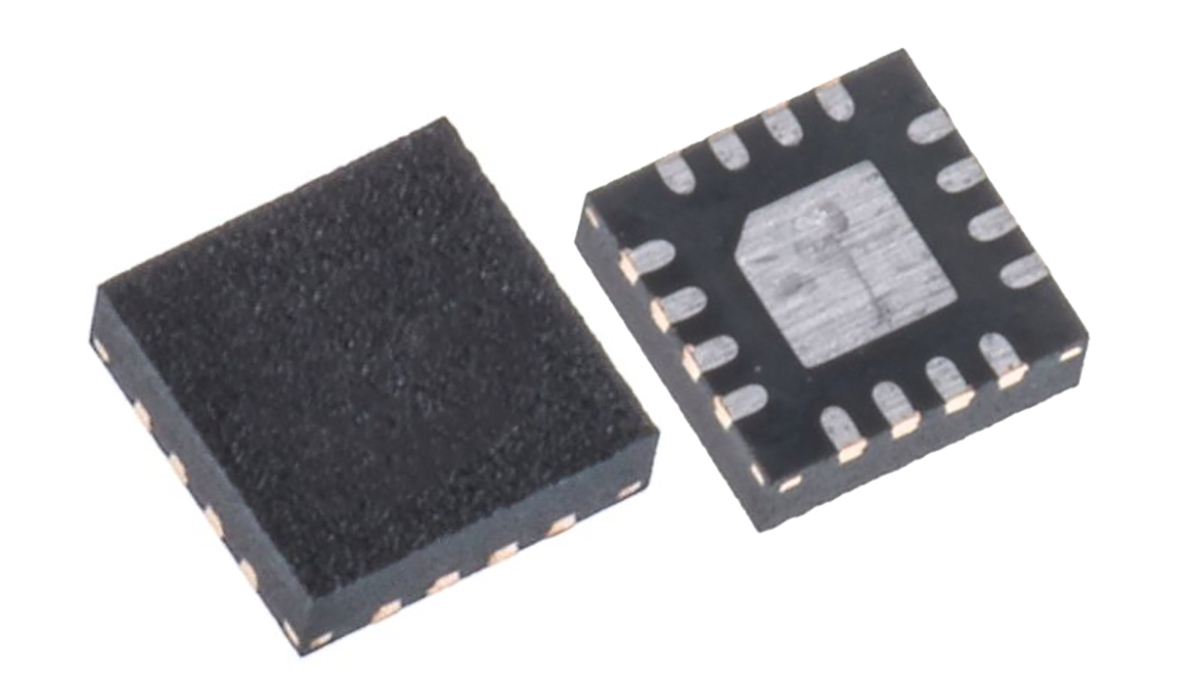

Package Type:
QFN
Minimum Operating Temperature:
-40 °C
Typical Response Time:
1.3µs
Typical Voltage Gain:
200 V/mV
Maximum Operating Temperature:
+125 °C
Pin Count:
16
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
-
Current - Quiescent (Max):
2.5mA
Operating Temperature:
-
Voltage - Supply, Single/Dual (±):
2V ~ 36V, ±1V ~ 18V
Package / Case:
16-VFQFN Exposed Pad
Type:
General Purpose
Propagation Delay (Max):
-
REACH Status:
REACH Unaffected
Output Type:
CMOS, DTL, MOS, Open-Collector, TTL
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tape & Reel (TR)
Voltage - Input Offset (Max):
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
-
standardLeadTime:
20 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
16-QFN (3x3)
Number of Elements:
4
Base Product Number:
LM2901
ECCN:
EAR99
