Typical Dual Supply Voltage:
±36V
Comparator Type:
General Purpose
Dimensions:
10.16 x 6.6 x 4.57mm
Mounting Type:
Through Hole
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Typical Single Supply Voltage:
2 → 36 V
Output Type:
CMOS, MOS, Open Collector, TTL
Height:
4.57mm
Width:
6.6mm
Length:
10.16mm
Package Type:
PDIP
Minimum Operating Temperature:
0 °C
Typical Response Time:
1.3µs
Maximum Operating Temperature:
+70 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
0.25µA @ 5V
Current - Quiescent (Max):
2.5mA
Operating Temperature:
0°C ~ 70°C
Voltage - Supply, Single/Dual (±):
2V ~ 36V, ±1V ~ 18V
Package / Case:
8-DIP (0.300", 7.62mm)
Type:
Differential
Propagation Delay (Max):
-
REACH Status:
REACH Unaffected
Output Type:
CMOS, MOS, Open-Drain, TTL
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tube
Voltage - Input Offset (Max):
5mV @ 30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
20mA
standardLeadTime:
6 Weeks
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
8-PDIP
Number of Elements:
2
Base Product Number:

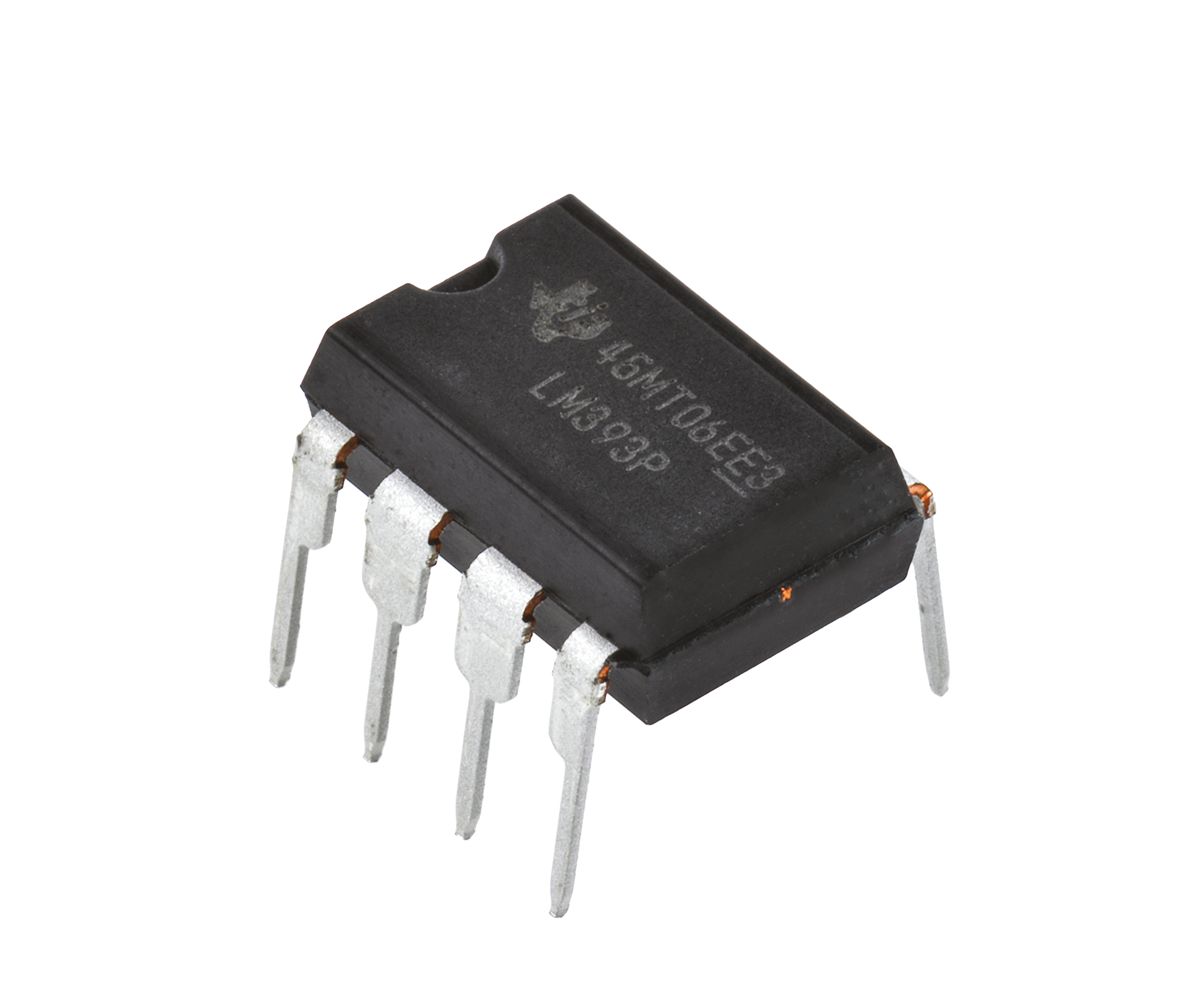

LM393
ECCN:
EAR99
