Typical Dual Supply Voltage:
±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Comparator Type:
Differential
Dimensions:
4.9 x 3.91 x 1.58mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Typical Single Supply Voltage:
3 → 28 V
Output Type:
Open Collector
Height:
1.58mm
Width:
3.91mm
Length:
4.9mm

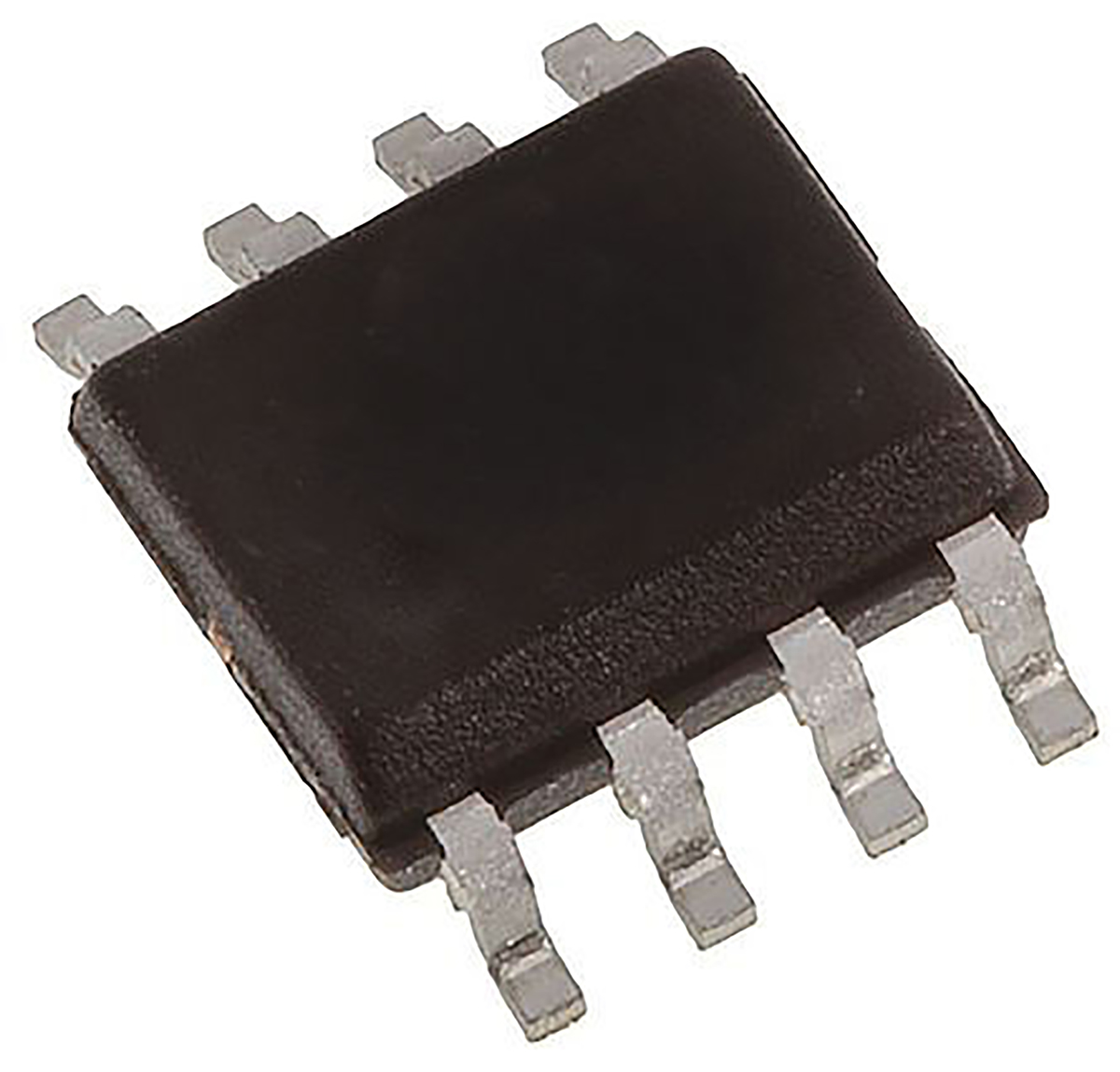

Package Type:
SOIC
Minimum Operating Temperature:
-25 °C
Typical Response Time:
1.3µs
Typical Voltage Gain:
106.02 dB
Maximum Operating Temperature:
85 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
0.25µA @ 5V
Current - Quiescent (Max):
2.5mA
Operating Temperature:
-25°C ~ 85°C
Voltage - Supply, Single/Dual (±):
2V ~ 36V, ±1V ~ 18V
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
Differential
Propagation Delay (Max):
-
REACH Status:
REACH Unaffected
Output Type:
CMOS, MOS, Open-Drain, TTL
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tube
Voltage - Input Offset (Max):
2mV @ 30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
20mA
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Number of Elements:
2
Base Product Number:
LM293
ECCN:
EAR99
