Typical Dual Supply Voltage:
±12 V, ±3 V, ±5 V, ±9 V
Comparator Type:
General Purpose
Dimensions:
3 x 4.4 x 1.15mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Number of Channels per Chip:
1
Typical Single Supply Voltage:
5 → 28 V
Output Type:
Open Collector/Emitter
Height:
1.15mm
Width:
4.4mm
Length:
3mm

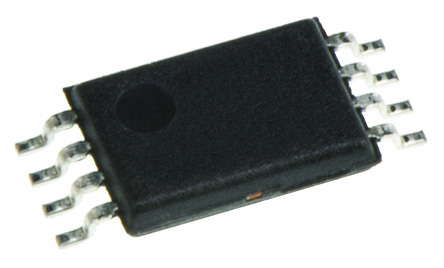

Package Type:
TSSOP
Minimum Operating Temperature:
0 °C
Typical Response Time:
0.165µs
Typical Voltage Gain:
106.02 dB
Maximum Operating Temperature:
+70 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
0.25µA @ ±15V
Current - Quiescent (Max):
7.5mA
Operating Temperature:
0°C ~ 70°C
Voltage - Supply, Single/Dual (±):
3.5V ~ 30V, ±1.75V ~ 15V
Package / Case:
8-TSSOP (0.173", 4.40mm Width)
Type:
General Purpose
Propagation Delay (Max):
-
REACH Status:
REACH Unaffected
Output Type:
DTL, MOS, Open-Collector, Open-Emitter, RTL, TTL
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tube
Voltage - Input Offset (Max):
7.5mV @ ±15V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
50mA
standardLeadTime:
6 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-TSSOP
Number of Elements:
1
Base Product Number:
LM311
ECCN:
EAR99
