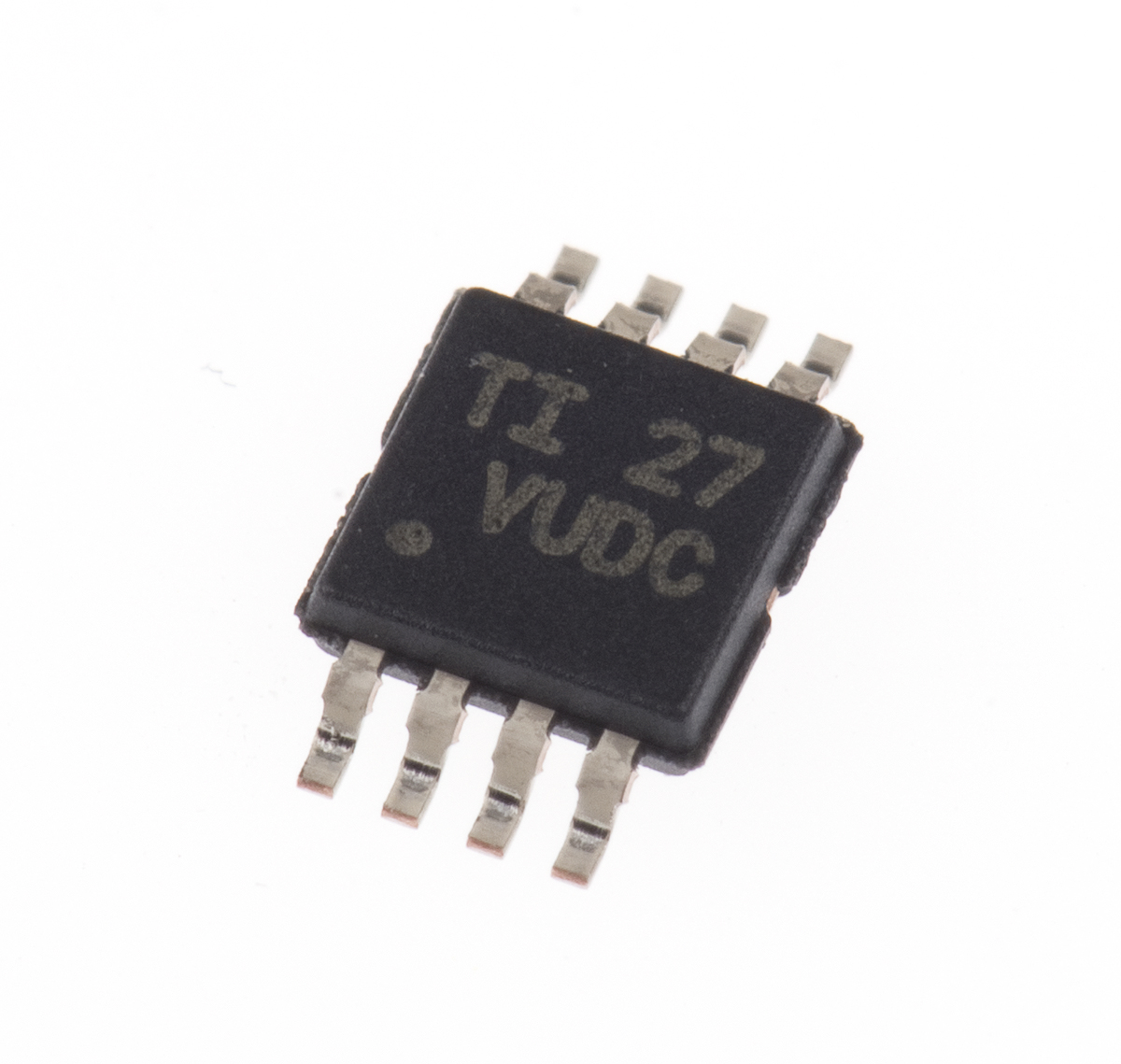

Texas Instruments TLV3202AIDGK Comparator, Push-Pull O/P, 2.9ns 2.7 → 5.5 V 8-Pin MSOP

TLV3202AIDGK Texas Instruments Comparator, Push-Pull O/P, 2.9ns 2.7 → 5.5 V 8-Pin MSOP
TLV3202AIDGK
Texas Instruments

Product Information

Comparator Type:
Low Power
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Typical PSRR:
85dB
Power Supply Type:
Single
Number of Channels per Chip:
1
Typical CMRR:
70dB
Typical Single Supply Voltage:
2.7 → 5.5 V
Output Type:
Push-Pull
Height:
0.95mm
Width:
3.1mm
Length:
3.1mm
Package Type:
MSOP
Minimum Operating Temperature:
-40 °C
Typical Response Time:
2.9ns
Maximum Operating Temperature:
+125 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
50pA @ 5V
Current - Quiescent (Max):
50µA
Operating Temperature:
-40°C ~ 125°C
Voltage - Supply, Single/Dual (±):
2.7V ~ 5.5V
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Type:
General Purpose
Propagation Delay (Max):
50ns
REACH Status:
REACH Unaffected
Output Type:
Push-Pull
Hysteresis:
1.2mV
CMRR, PSRR (Typ):
70dB CMRR, 85dB PSRR
Package:
Tube
Voltage - Input Offset (Max):
5mV @ 5V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
-
standardLeadTime:
12 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-VSSOP
Number of Elements:
2
Base Product Number:
TLV3202
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Comparator Push-Pull O/P 2.9ns 2.7 → 5.5 V 8-Pin MSOP manufactured by Texas Instruments. The manufacturer part number is TLV3202AIDGK. The given dimensions of the product include 3.1 x 3.1 x 0.95mm. The product is available in surface mount configuration. Furthermore, it has apush-pull output. In addition, the height is 0.95mm. Furthermore, the product is 3.1mm wide. Its accurate length is 3.1mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The maximum input bias current includes 50pa @ 5v. It has a maximum quiescent current of 50µa. The product has -40°c ~ 125°c operating temperature range. It features a typical 2.7v ~ 5.5v voltage of single or dual. Moreover, the product comes in [Package/ Case]. It comes in general purpose configuration. Has a maximum 50ns propagation delay. In addition, it is reach unaffected. It is shipped in tube. The maximum input offset voltage of 5mv @ 5v. Its typical moisture sensitivity level is 1 (unlimited). It has a long 12 weeks standard lead time. 8-vssop is the supplier device package value. It carries 2 elements. Moreover, it corresponds to tlv3202, a base product number of the product. The product is designated with the ear99 code number
