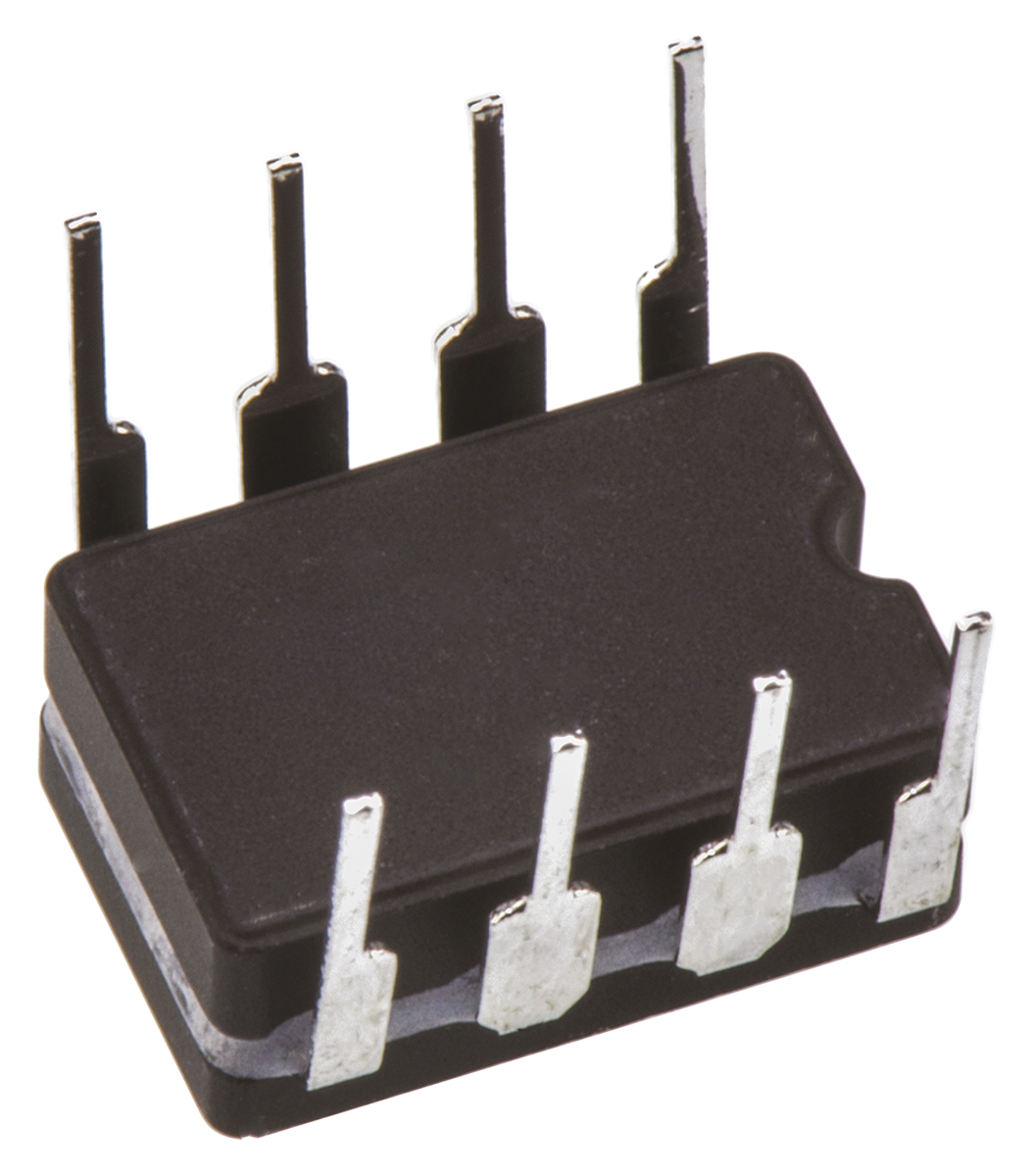

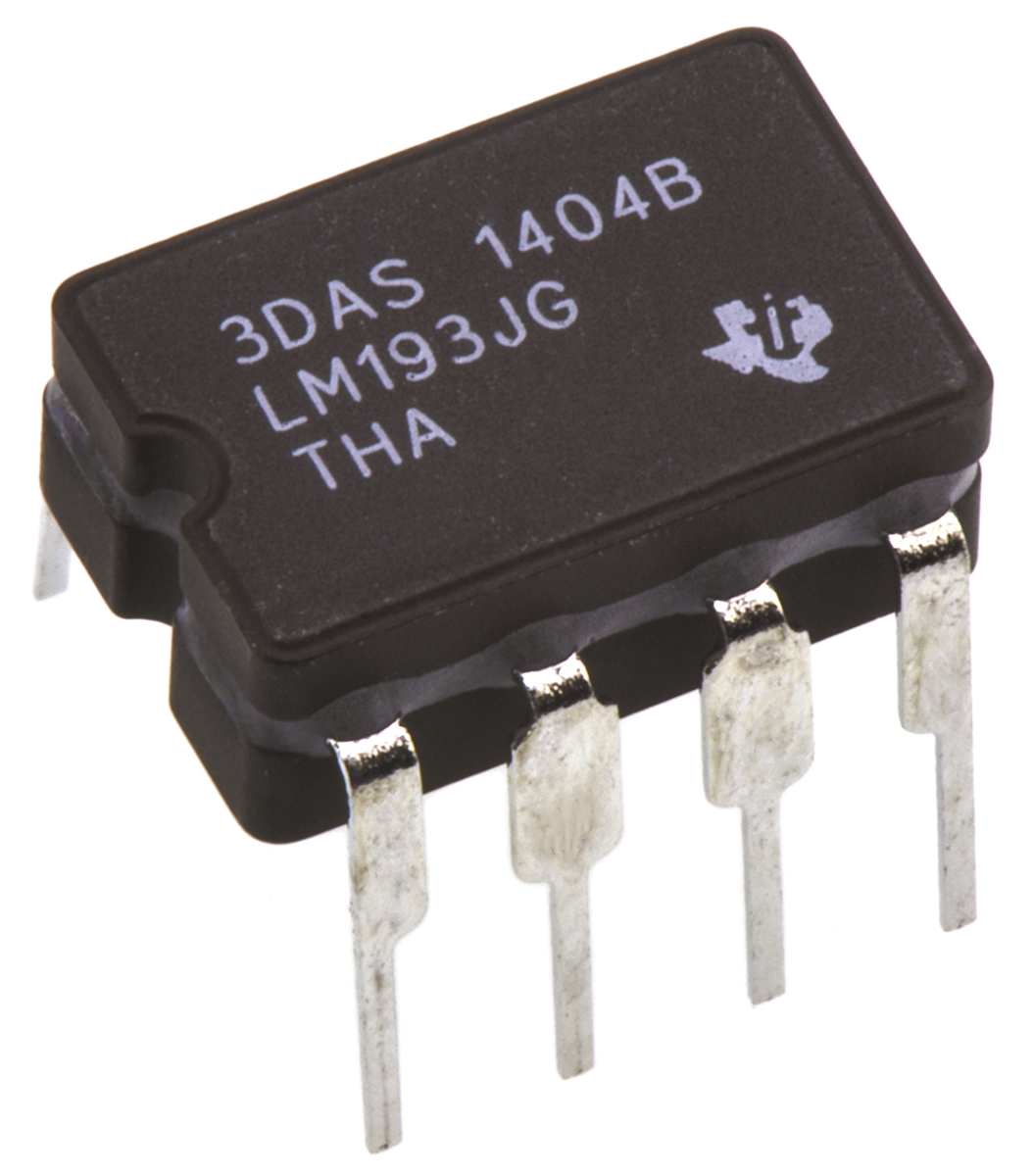

Texas Instruments LM193JG Dual Comparator, Open Collector, Open Drain O/P, 1.3μs 2 → 36 V 8-Pin CDIP

LM193JG Texas Instruments Dual Comparator, Open Collector, Open Drain O/P, 1.3μs 2 → 36 V 8-Pin CDIP
LM193JG
Texas Instruments

Product Information

Typical Dual Supply Voltage:
±15V
Comparator Type:
Differential
Dimensions:
10.16 x 7.11 x 4.57mm
Mounting Type:
Through Hole
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Typical Single Supply Voltage:
2 → 36 V
Output Type:
Open Collector, Open Drain
Height:
4.57mm
Width:
7.11mm
Length:
10.16mm
Package Type:
CDIP
Minimum Operating Temperature:
-55 °C
Typical Response Time:
1.3µs
Typical Voltage Gain:
200 V/mV
Maximum Operating Temperature:
+125 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
0.1µA @ 5V
Operating Temperature:
-55°C ~ 125°C
Voltage - Supply, Single/Dual (±):
2V ~ 30V, ±1V ~ 15V
Package / Case:
8-CDIP (0.300", 7.62mm)
Type:
General Purpose
Propagation Delay (Max):
1.3µs (Typ)
Current - Quiescent (Max):
1mA
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tube
Voltage - Input Offset (Max):
5mV @ 30V
Moisture Sensitivity Level (MSL):
Not Applicable
Current - Output (Typ):
6mA @ 5V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
8-CDIP
Number of Elements:
2
ECCN:
EAR99
Checking for live stock

This is Dual Comparator Open Collector Open Drain O/P 1.3μs 2 → 36 V 8-Pin CDIP manufactured by Texas Instruments. The manufacturer part number is LM193JG. The given dimensions of the product include 10.16 x 7.11 x 4.57mm. The product is available in through hole configuration. Furthermore, it has aopen collector, open drain output. In addition, the height is 4.57mm. Furthermore, the product is 7.11mm wide. Its accurate length is 10.16mm. Whereas, the minimum operating temperature of the product is -55 °c. It has a maximum operating temperature of +125 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The maximum input bias current includes 0.1µa @ 5v. The product has -55°c ~ 125°c operating temperature range. It features a typical 2v ~ 30v, ±1v ~ 15v voltage of single or dual. Moreover, the product comes in [Package/ Case]. It comes in general purpose configuration. Has a maximum 1.3µs (typ) propagation delay. It has a maximum quiescent current of 1ma. It is shipped in tube. The maximum input offset voltage of 5mv @ 30v. Its typical moisture sensitivity level is not applicable. Features a typical output current of 6ma @ 5v. 8-cdip is the supplier device package value. It carries 2 elements. The product is designated with the ear99 code number

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Datasheet_LM193 Series(Technical Reference)
