Typical Dual Supply Voltage:
±1 → ±18V dc
Comparator Type:
General Purpose
Dimensions:
3.1 x 3.1 x 0.95mm
Mounting Type:
Surface Mount
Power Supply Type:
Dual, Single
Number of Channels per Chip:
2
Typical Single Supply Voltage:
2 → 36 V dc
Output Type:
CMOS, DTL, ECL, MOS, TTL
Height:
0.95mm
Width:
3.1mm
Length:
3.1mm

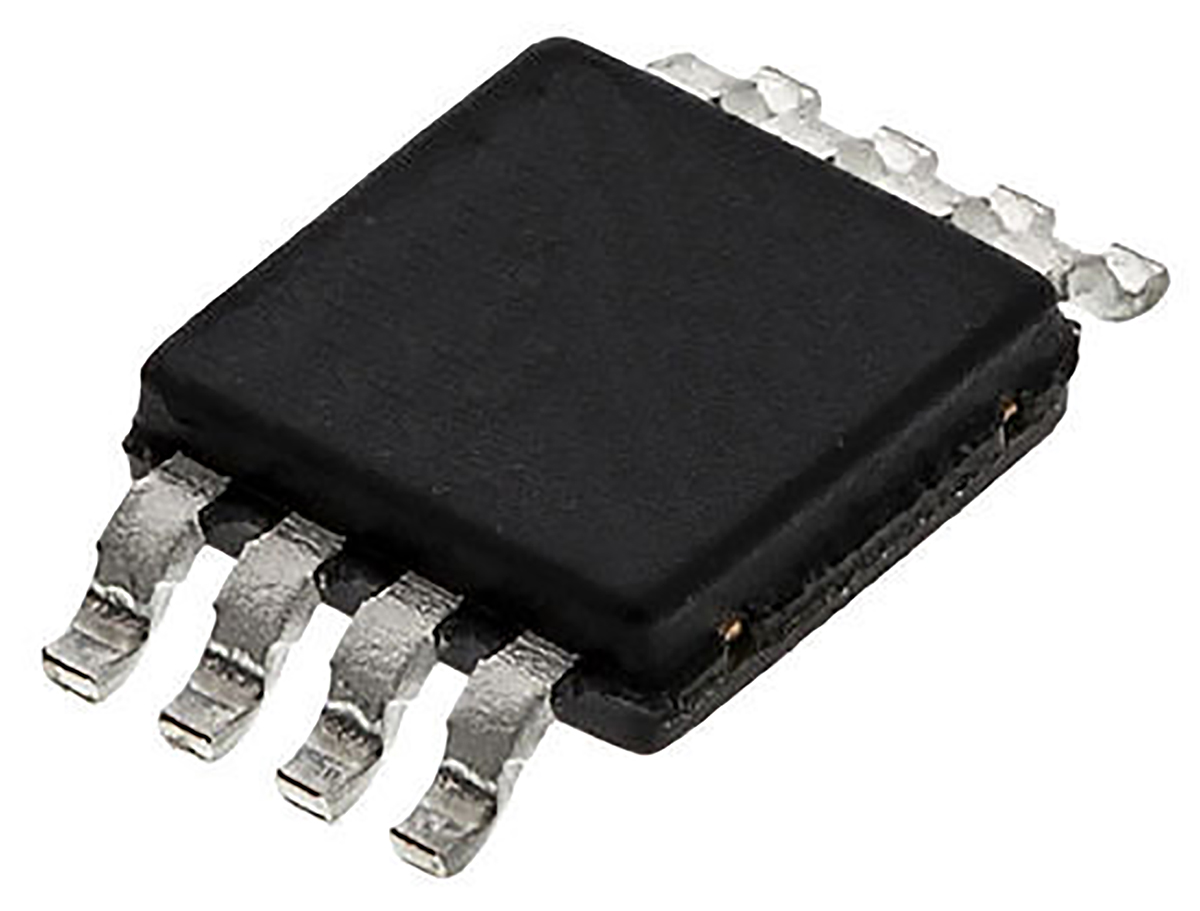

Package Type:
MSOP
Minimum Operating Temperature:
0 °C
Typical Response Time:
1.5µs
Typical Voltage Gain:
200 V/mV
Maximum Operating Temperature:
+70 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
0.25µA @ 5V
Current - Quiescent (Max):
2.5mA
Operating Temperature:
0°C ~ 70°C
Voltage - Supply, Single/Dual (±):
2V ~ 36V, ±1V ~ 18V
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Type:
General Purpose
Propagation Delay (Max):
-
REACH Status:
REACH Unaffected
Output Type:
CMOS, DTL, ECL, MOS, Open-Collector, TTL
Hysteresis:
-
CMRR, PSRR (Typ):
-
Package:
Tape & Reel (TR)
Voltage - Input Offset (Max):
5mV @ 30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
16mA @ 5V
standardLeadTime:
34 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-MSOP
Number of Elements:
2
Base Product Number:
LM393
ECCN:
EAR99
