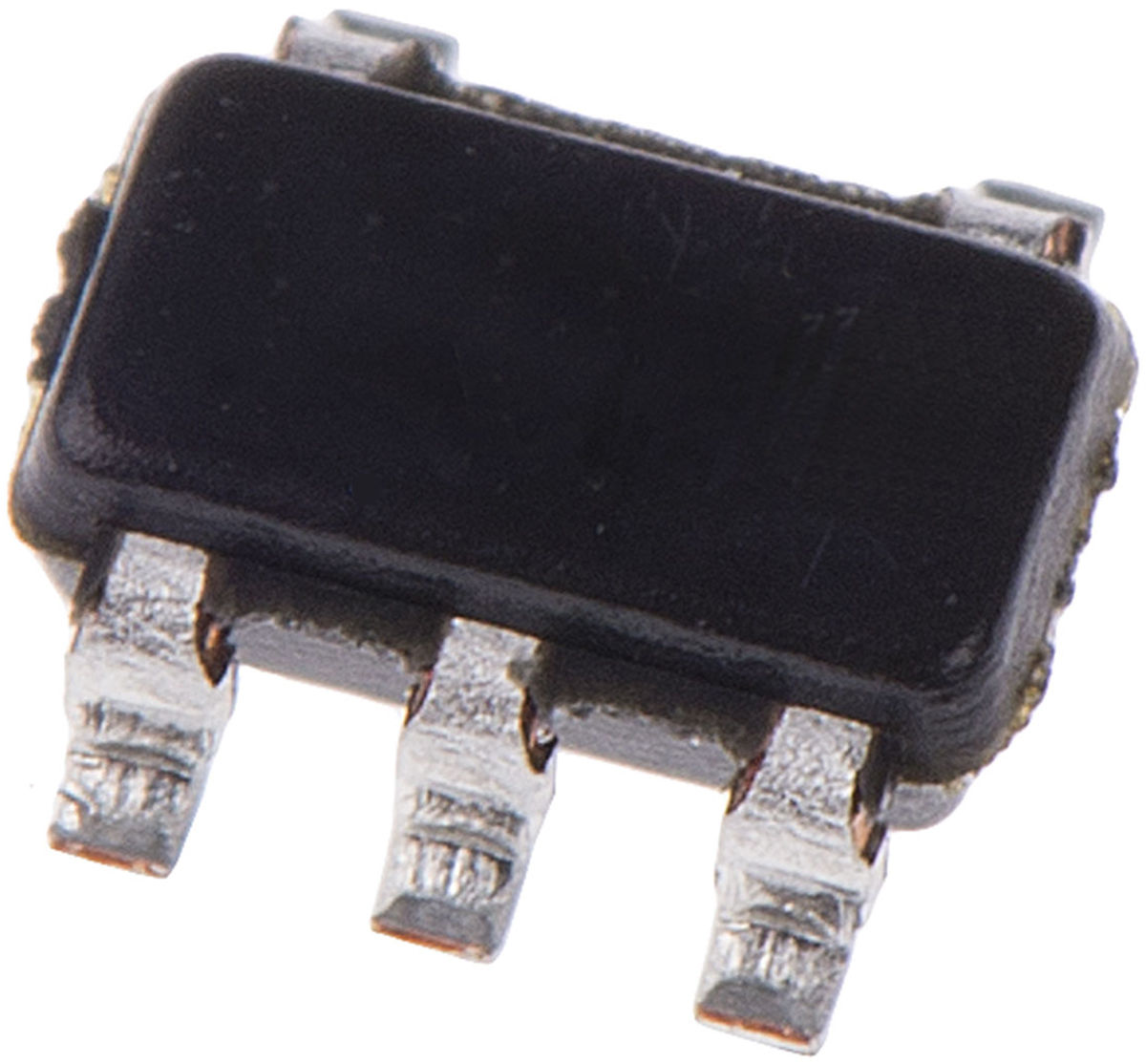

NCV2200SN2T1G ON Semiconductor, Comparator, Complementary O/P, 16ns 0.85 → 6 V 5-Pin SOT-23

NCV2200SN2T1G ON Semiconductor, Comparator, Complementary O/P, 16ns 0.85 → 6 V 5-Pin SOT-23
NCV2200SN2T1G
NCV2200SN2T1G
ET21469332
onsemi

Product Information

Comparator Type:
Low Power
Dimensions:
3 x 1.5 x 1mm
Mounting Type:
Surface Mount
Typical PSRR:
55dB
Power Supply Type:
Single
Number of Channels per Chip:
1
Typical CMRR:
65dB
Typical Single Supply Voltage:
0.85 → 6 V
Output Type:
Complementary
Height:
1mm
Width:
1.5mm
Length:
3mm
Package Type:
SOT-23
Minimum Operating Temperature:
-40 °C
Typical Response Time:
16ns
Maximum Operating Temperature:
+105 °C
Pin Count:
5
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
1pA
Current - Quiescent (Max):
10µA
Operating Temperature:
-40°C ~ 125°C
Voltage - Supply, Single/Dual (±):
0.85V ~ 6V
Package / Case:
SOT-23-5 Thin, TSOT-23-5
Type:
General Purpose
Propagation Delay (Max):
1.08µs
REACH Status:
REACH Unaffected
Output Type:
Complementary, Rail-to-Rail
Hysteresis:
20mV
CMRR, PSRR (Typ):
70dB CMRR, 80dB PSRR
Package:
Tape & Reel (TR)
Voltage - Input Offset (Max):
5mV @ 6V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
-
standardLeadTime:
41 Weeks
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q100
Supplier Device Package:
5-TSOP
Number of Elements:
1
Base Product Number:
NCV2200
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is ON Semiconductor Comparator Complementary O/P 16ns 0.85 → 6 V 5-Pin SOT-23 manufactured by onsemi. The manufacturer part number is NCV2200SN2T1G. The given dimensions of the product include 3 x 1.5 x 1mm. The product is available in surface mount configuration. Furthermore, it has acomplementary output. In addition, the height is 1mm. Furthermore, the product is 1.5mm wide. Its accurate length is 3mm. Whereas, the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +105 °c. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The maximum input bias current includes 1pa. It has a maximum quiescent current of 10µa. The product has -40°c ~ 125°c operating temperature range. It features a typical 0.85v ~ 6v voltage of single or dual. Moreover, the product comes in [Package/ Case]. It comes in general purpose configuration. Has a maximum 1.08µs propagation delay. In addition, it is reach unaffected. Furthermore, it has acomplementary, rail-to-rail output. It is shipped in tape & reel (tr). The maximum input offset voltage of 5mv @ 6v. Its typical moisture sensitivity level is 1 (unlimited). It has a long 41 weeks standard lead time. The product automotive, aec-q100, is a highly preferred choice for users. 5-tsop is the supplier device package value. It carries 1 elements. Moreover, it corresponds to ncv2200, a base product number of the product. The product is designated with the ear99 code number

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
NCV2x/NCV30x/NCV5x/NCV6x/NCV8x 30/Sep/2022(PCN Assembly/Origin)
pdf icon
NCS2200,02(A)(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
