Depth:
130mm
Width:
113.4 mm
Length:
55mm
Series:
3RT2
Function:
Motor Control
Mount Type:
Snap-On
Coil Voltage:
20/33 V ac/dc
Power Rating:
37kW

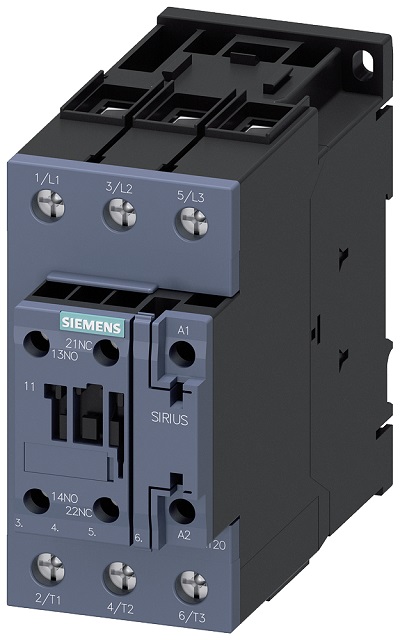

Product Type:
Contactor
Terminal Type:
Screw Clamp
Contact Current:
80A
Contact Voltage:
400V
Number of Poles:
3
Better World Claim:
Low Carbon Manufacture
Standards/Approvals:
CCC, CSA, EAC, RoHS, UKCA, UL, VDE
Better World Product:
Yes
Distrelec Product Id:
30402508
Contactor Application:
Motor Control
Operational Current Ie:
80A
Control Circuit Voltage Uc:
24 V
Normal State Configuration:
3 NO
Number of Auxiliary Contacts:
2
Pole and Throw Configuration:
3PST-NO
Maximum Operating Temperature:
60°C
Minimum Operating Temperature:
-25°C
Auxiliary Contact Configuration:
1 NO/1 NC
Maximum Operating Temperature:
+60°C
Contact Current Rating:
80 A
Series:
3RT2
Minimum Operating Temperature:
-25°C
Coil Voltage:
20 → 33 V ac/dc
Length:
55mm
Pole and Throw Configuration:
3PST-NO
Width:
113.4mm
Depth:
130mm
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Range:
SIRIUS Innovation
Auxiliary Contact Configuration:
1NO + 1NC
Power Rating:
37 kW
Contact Voltage Rating:
400 V ac
Number of Poles:
3
Terminal Type:
Screw
