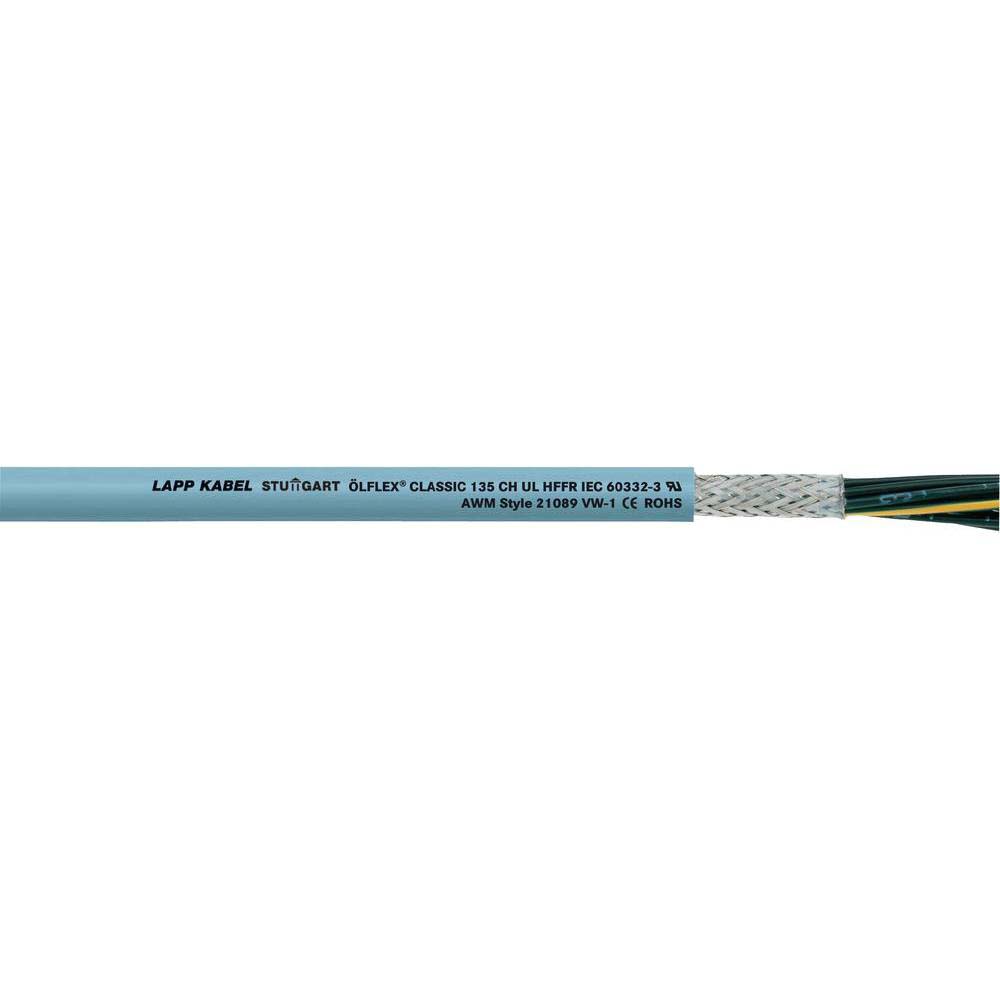

Lapp 5 Core Industrial Cable 0.75 mm² CSA, Screened Grey Low Smoke Zero Halogen (LSZH) Sheath, 50m Reel

  • Enrgtech Part No: ET13804315
  • |
  • Manufacturer Part No:

    1123237

  • |
  • Manufacturer: Lapp
1123237 Lapp 5 Core Industrial Cable 0.75 mm² CSA, Screened Grey Low Smoke Zero Halogen (LSZH) Sheath, 50m Reel
Lapp

Product Information

Fire Behaviour:
Flame Retardant, Low Smoke Zero Halogen (LSZH)
Maximum Operating Temperature:
+80°C
Standards Met:
CE, RoHS, UL
Control Cable Type:
CY
Screen Type:
Braid, Foil
Conductor Material:
Bare Copper
Series:
ÖLFLEX CLASSIC 135 CH
Voltage Rating:
500 V
Drain Wire:
Yes
Sheath Colour:
Grey
Length:
50m
American Wire Gauge:
18 AWG
Insulation Material:
Zero Halogen
Minimum Operating Temperature:
-40°C
Screened/Unscreened:
Screened
Number of Cores:
5
Cross Sectional Area:
0.75 mm²
Outer Diameter:
7.7mm
Minimum Bend Radius:
6 x Diameter
Sheath Material:
LSZH
RoHs Compliant
Checking for live stock

This is 5 Core Industrial Cable 0.75 mm² CSA Screened Grey Low Smoke Zero Halogen (LSZH) Sheath 50m Reel manufactured by Lapp. The manufacturer part number is 1123237. It has a maximum operating temperature of +80°c. The conductor is made from bare copper material. The product ölflex classic 135 ch, is a highly preferred choice for users. Moreover, the product has a nominal 500 v voltage rating. Its accurate length is 50m. It has a robust zero halogen insulation material. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
