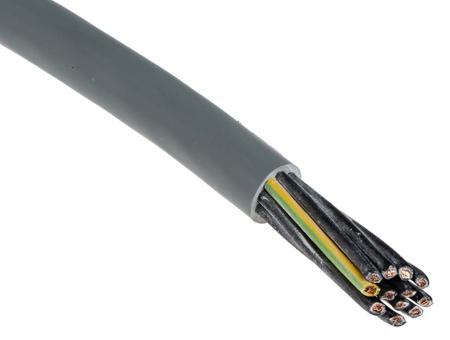

Lapp 12 Core Industrial Cable 0.75 mm² CSA, Unscreened Grey Low Smoke Zero Halogen (LSZH) Sheath, 50m Reel

  • Enrgtech Part No: ET13943967
  • |
  • Manufacturer Part No:

    1123047

  • |
  • Manufacturer: Lapp
1123047 Lapp 12 Core Industrial Cable 0.75 mm² CSA, Unscreened Grey Low Smoke Zero Halogen (LSZH) Sheath, 50m Reel
1123047
1123047
ET13943967
1123047 Lapp 12 Core Industrial Cable 0.75 mm² CSA, Unscreened Grey Low Smoke Zero Halogen (LSZH) Sheath, 50m Reel
Lapp

Product Information

Fire Behaviour:
Flame Retardant, Low Smoke Zero Halogen (LSZH)
Maximum Operating Temperature:
+80°C
Standards Met:
CE, RoHS, UL
Control Cable Type:
YY
Screen Type:
Unscreened
Conductor Material:
Copper
Series:
ÖLFLEX CLASSIC 130 H
Voltage Rating:
500 V
Drain Wire:
Yes
Sheath Colour:
Grey
Length:
50m
American Wire Gauge:
18 AWG
Insulation Material:
Zero Halogen
Minimum Operating Temperature:
-40°C
Screened/Unscreened:
Unscreened
Number of Cores:
12
Cross Sectional Area:
0.75 mm²
Outer Diameter:
9.9mm
Minimum Bend Radius:
4 x Diameter
Sheath Material:
LSZH
RoHs Compliant
Checking for live stock

This is 12 Core Industrial Cable 0.75 mm² CSA Unscreened Grey Low Smoke Zero Halogen (LSZH) Sheath 50m Reel manufactured by Lapp. The manufacturer part number is 1123047. It has a maximum operating temperature of +80°c. The conductor is made from copper material. The product ölflex classic 130 h, is a highly preferred choice for users. Moreover, the product has a nominal 500 v voltage rating. Its accurate length is 50m. It has a robust zero halogen insulation material. Whereas, the minimum operating temperature of the product is -40°c.
