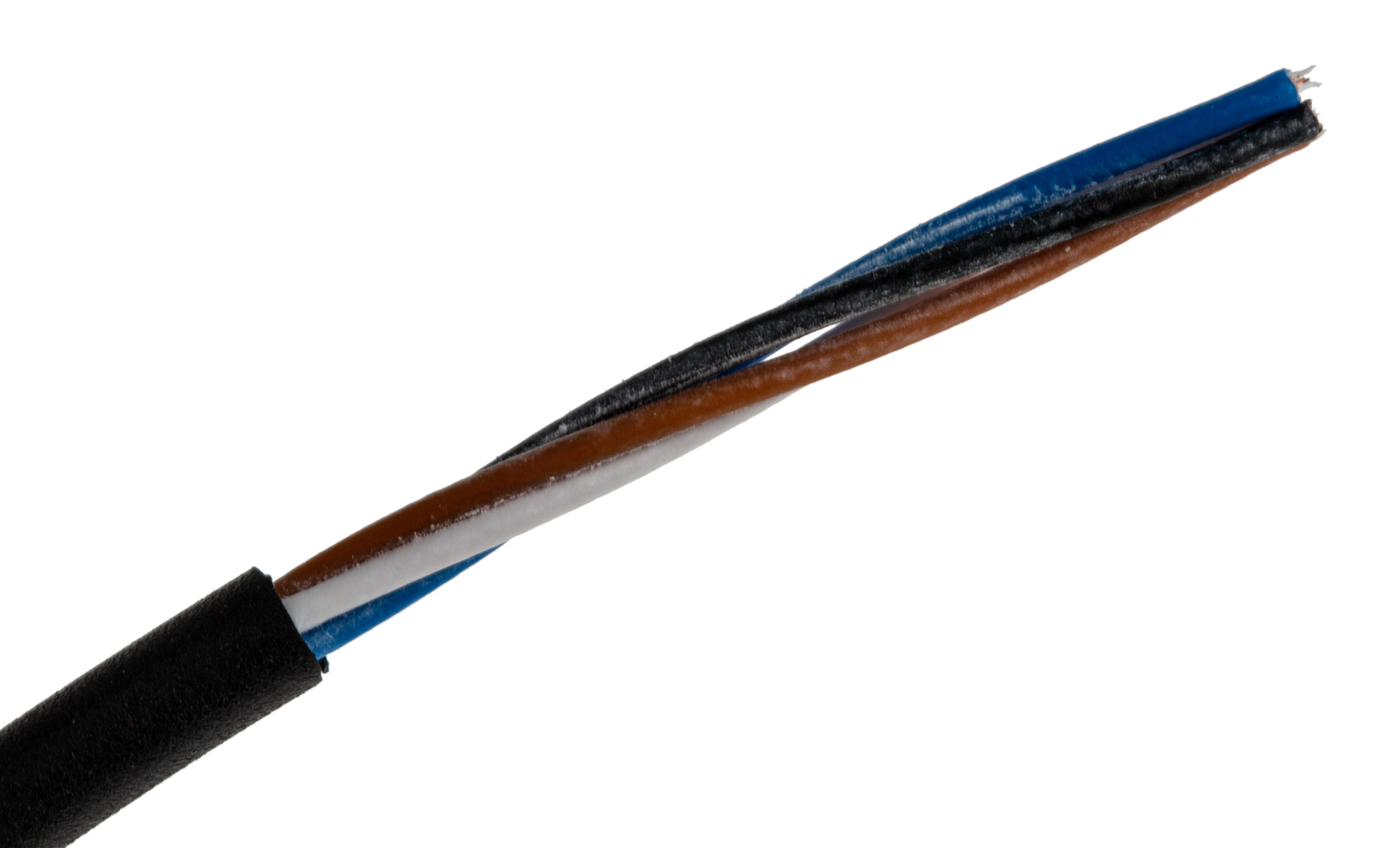

Lapp 4 Core Polyurethane PUR Sheath Actuator/Sensor Cable, 0.34 mm² CSA

  • Enrgtech Part No: ET13944080
  • |
  • Manufacturer Part No:

    7038865

  • |
  • Manufacturer: Lapp
7038865 Lapp 4 Core Polyurethane PUR Sheath Actuator/Sensor Cable, 0.34 mm² CSA
7038865
7038865
Lapp

Product Information

American Wire Gauge:
22 AWG
Sheath Material:
PUR
Conductor Resistance:
57 Ω/km
Cable Shape:
Multicore
Conductor Material:
Bare Copper
Series:
UNITRONIC SENSOR FD Lif9Y11Y
Voltage Rating:
300 V
Fire Behaviour:
Flame Retardant
Oil Resistant:
Yes
Sheath Colour:
Black
Screened/Unscreened:
Unscreened
Insulation Material:
PP
Minimum Operating Temperature:
-40°C
Number of Cores:
4
Maximum Operating Temperature:
+80°C
Outer Diameter:
4.6mm
Minimum Bend Radius:
5 x D
Cross Sectional Area:
0.34 mm²
RoHs Compliant
Checking for live stock

This is 4 Core Polyurethane PUR Sheath Actuator/Sensor Cable 0.34 mm² CSA manufactured by Lapp. The manufacturer part number is 7038865. The conductor is made from bare copper material. The product unitronic sensor fd lif9y11y, is a highly preferred choice for users. Moreover, the product has a nominal 300 v voltage rating. It has a robust pp insulation material. Whereas, the minimum operating temperature of the product is -40°c. It has a maximum operating temperature of +80°c.

pdf icon
Unitronic Sensor Cable Data Sheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
