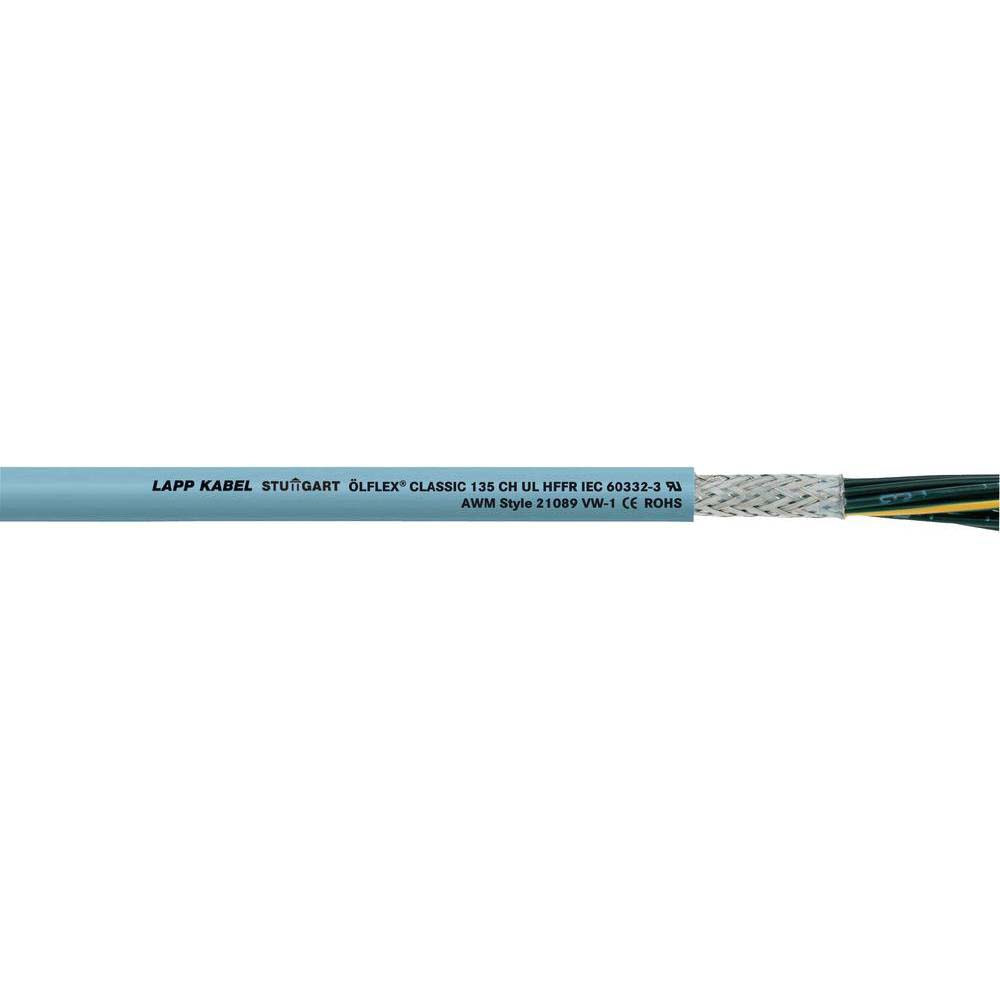

Lapp 4 Core Screened Grey Industrial Cable, 1.5 mm² CSA 50m

  • Enrgtech Part No: ET14152540
  • |
  • Manufacturer Part No:

    1123309

  • |
  • Manufacturer: Lapp
1123309 Lapp 4 Core Screened Grey Industrial Cable, 1.5 mm² CSA 50m
Lapp

Product Information

American Wire Gauge:
15 AWG
Oil Resistant:
No
Bedding Material:
Tinned Copper
Screened/Unscreened:
Screened
Number of Cores:
4
Outer Diameter:
8.2mm
Standards Met:
CE, RoHS, UL
Maximum Operating Temperature:
+80°C
Drain Wire:
Yes
Voltage Rating:
500 V
Minimum Bend Radius:
6 x Diameter
Fire Behaviour:
Flame Retardant, Low Smoke Zero Halogen (LSZH)
Length:
50m
Sheath Material:
LSZH
Control Cable Type:
CY
Screen Type:
Braid, Foil
Conductor Material:
Bare Copper
Series:
ÖLFLEX CLASSIC 135 CH
Sheath Colour:
Grey
Cross Sectional Area:
1.5 mm²
Minimum Operating Temperature:
-40°C
Insulation Material:
Zero Halogen
RoHs Compliant
Checking for live stock

This is 4 Core Screened Grey Industrial Cable 1.5 mm² CSA 50m manufactured by Lapp. The manufacturer part number is 1123309. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal 500 v voltage rating. Its accurate length is 50m. The conductor is made from bare copper material. The product ölflex classic 135 ch, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. It has a robust zero halogen insulation material.

pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
