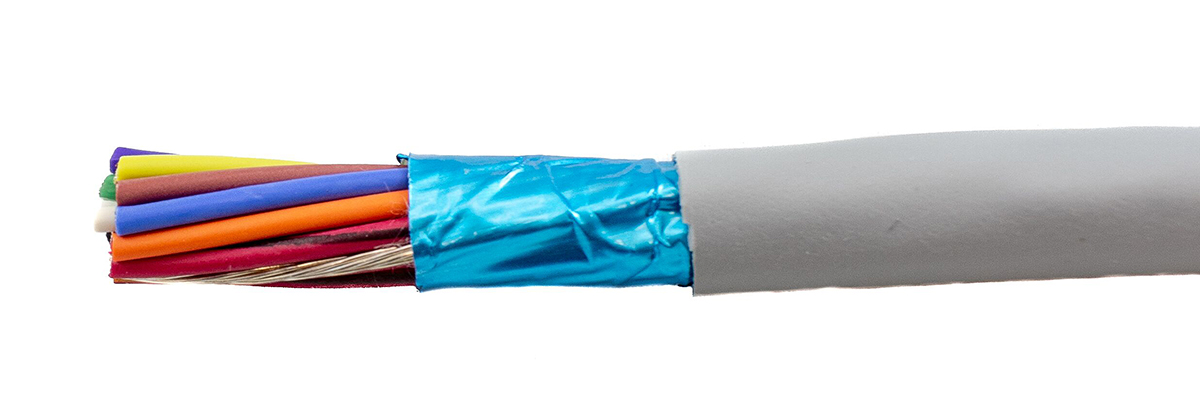

Alpha Wire 15 Core Industrial Cable 0.24 mm² CSA, Screened Grey Modified Polyphenylene Ether MPPE Sheath, 30m Reel

78131 Alpha Wire 15 Core Industrial Cable 0.24 mm² CSA, Screened Grey Modified Polyphenylene Ether MPPE Sheath, 30m Reel
78131
78131 Alpha Wire 15 Core Industrial Cable 0.24 mm² CSA, Screened Grey Modified Polyphenylene Ether MPPE Sheath, 30m Reel
Alpha Wire

Product Information

American Wire Gauge:
24 AWG
Screened/Unscreened:
Screened
Number of Cores:
15
Outer Diameter:
5.51mm
Standards Met:
CE, CSA, UL
Core Strands:
19/0.127 mm
Maximum Operating Temperature:
+80°C
Drain Wire:
No
Voltage Rating:
300 V
Minimum Bend Radius:
10 x Diameter
Fire Behaviour:
Halogen Free
Length:
30m
Sheath Material:
mPPE
Control Cable Type:
ECO
Screen Type:
Foil
Conductor Material:
Tinned Copper
Series:
EcoCable Mini
Sheath Colour:
Grey
Cross Sectional Area:
0.24 mm²
Minimum Operating Temperature:
-40°C
Insulation Material:
MPPE
RoHs Compliant
Checking for live stock

This is 15 Core Industrial Cable 0.24 mm² CSA Screened Grey Modified Polyphenylene Ether MPPE Sheath 30m Reel manufactured by Alpha Wire. The manufacturer part number is 78131. It has a maximum operating temperature of +80°c. Moreover, the product has a nominal 300 v voltage rating. Its accurate length is 30m. The conductor is made from tinned copper material. The product ecocable mini, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40°c. It has a robust mppe insulation material.

pdf icon
Datasheet(Technical Reference)
pdf icon
Cable Selection Guide(Technical Reference)
